The DUP45V6P5-7 is a high-performance, surface-mount P-Channel MOSFET brought to you by Diodes Incorporated, a leading manufacturer in the semiconductor market. This product is designed to provide efficient power management and switching with a focus on reliability and energy savings. It is a suitable component for a wide range of electronic applications, including power supply, charging circuits, and power management systems.

Key Features

• Drain-Source Voltage (V_DS): The DUP45V6P5-7 can handle a maximum drain-source voltage of 45V, making it suitable for moderate voltage applications.
• Continuous Drain Current (I_D): This MOSFET supports a continuous drain current of 6.5A, ensuring it can manage significant power levels.
• R_DS(on): The device boasts a low on-resistance of typically 45 mΩ at V_GS = -10V, which translates to reduced power losses and improved efficiency.
• Power Dissipation (P_D): With a power dissipation of 1.25W, the DUP45V6P5-7 can endure reasonable amounts of heat generated during operation.

Applications

The versatility of the DUP45V6P5-7 allows it to be integrated into various electronic circuits. It is particularly well-suited for:

• Load switch applications
• Battery management systems
• DC-DC converters
• Power management for portable devices

Package and Quality

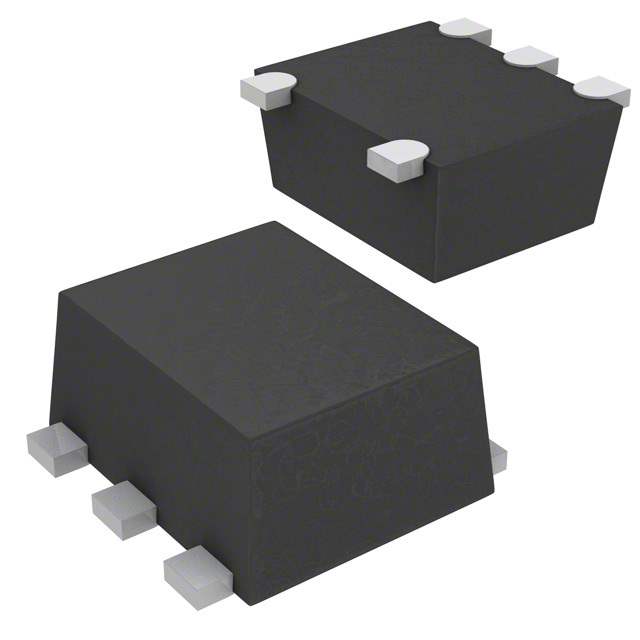

Packaged in a compact SOT-23 format, the DUP45V6P5-7 is designed for space-constrained applications. This package is not only space-efficient but also ensures robustness and durability. Diodes Incorporated is committed to delivering high-quality products, and the DUP45V6P5-7 is no exception, meeting stringent industry standards for performance and reliability.
