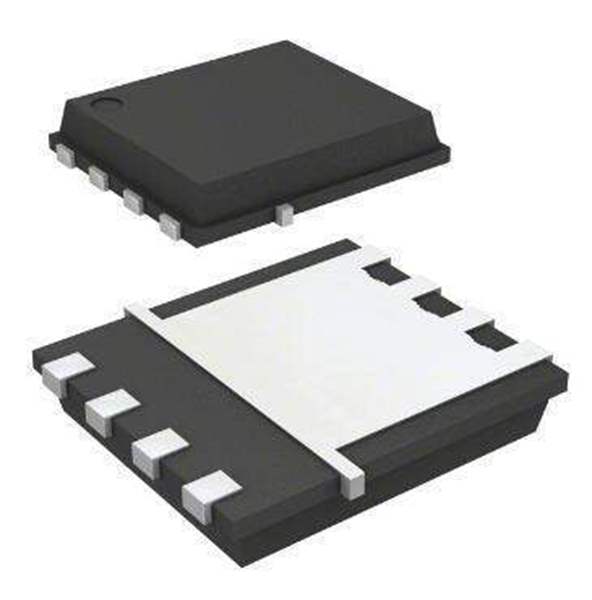

DMT4001LPS-13Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMT4001LPS-13

Part No DMT4001LPS-13
Manufacturer Diodes Incorporated
Catalog FETs - Single
Description MOSFET N-CH 40V 100A PWRDI5060-8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Packaging  Tape & Reel (TR)
Part Status Obsolete
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 1mOhm @ 30A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 160.5 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 12121 pF @ 20 V
Operating Temperature -55°C ~ 150°C (TJ)
Win Source Part Number WS1306629-DMT4001LPS-13
Ultra Librarian 3D Model Ultra Librarian DMT4001LPS-13 CAD Model

Description

N-Channel 40 V 100A (Tc) 2.6W Surface Mount PowerDI5060-8 (Type K)
