DMN3013LDG-13 MOSFET Overview

The DMN3013LDG-13 from Diodes Incorporated is a high-performance, N-channel enhancement mode field-effect transistor (MOSFET) that offers excellent power efficiency and reliability for a wide range of applications. This MOSFET is designed using advanced trench technology to provide superior on-resistance and a high switching performance.

Key Features

• Low On-Resistance: The DMN3013LDG-13 features a low on-resistance (R<sub>DS(on)), which minimizes conduction losses and improves overall efficiency.
• High Continuous Drain Current: It supports a high continuous drain current (I<sub>D) that enables the device to handle high power applications with ease.
• High-Speed Switching: Designed for fast switching, this MOSFET is suitable for high-frequency power switching applications.

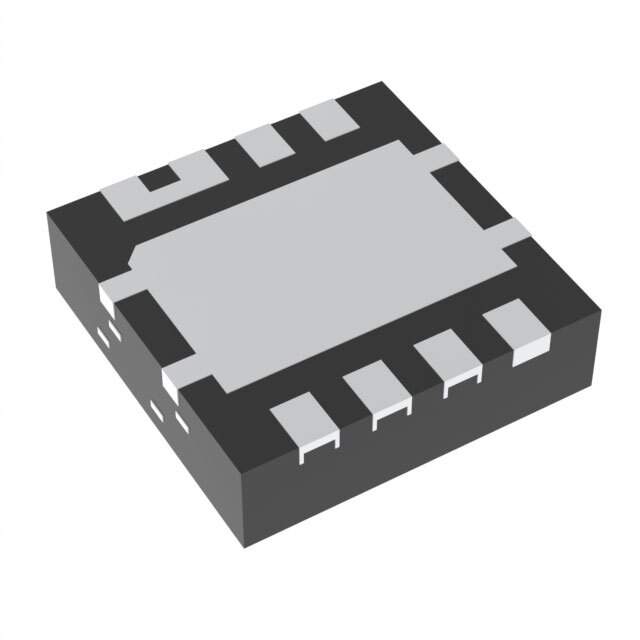

• PowerDI®5060-8 Package: The device comes in a compact PowerDI®5060-8 package, which ensures a small footprint and low thermal resistance.
• RoHS Compliant: The DMN3013LDG-13 is compliant with RoHS standards, making it suitable for use in environmentally sensitive applications.

Applications

The DMN3013LDG-13 is ideal for a variety of applications, including:

• Power Management
• DC-DC Converters
• Load Switches
• Motor Drives
• Battery Management Systems

Technical Specifications

Some of the key technical specifications of the DMN3013LDG-13 include:

• V<sub>DS: 30V Maximum Drain-Source Voltage
• I<sub>D: 8.5A Continuous Drain Current
• R<sub>DS(on): 24mΩ at V<sub>GS = 10V
• Operating Temperature Range: -55°C to +150°C

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The DMN3013LDG-13 MOSFET is subjected to rigorous testing and quality control measures to ensure it meets the highest industry standards for performance and reliability.

Ordering Information

The DMN3013LDG-13 is available in tape and reel packaging, facilitating easy integration into automated manufacturing processes. For detailed ordering and shipping information, please refer to the Diodes Incorporated official website or contact an authorized distributor.
