Diodes Incorporated DDZ9689T-7 Zener Diode

The DDZ9689T-7 from Diodes Incorporated is a high precision, low leakage current Zener diode designed for a multitude of applications that require voltage regulation and voltage reference solutions. This component is part of the DDZ series, which are known for their reliability and consistency in performance.

With a nominal Zener voltage of 3.6V, the DDZ9689T-7 provides a tight voltage regulation window, making it ideal for precision voltage clamping and reference circuits. The device is capable of handling a continuous power dissipation of 500mW, ensuring adequate headroom for various electronic applications.

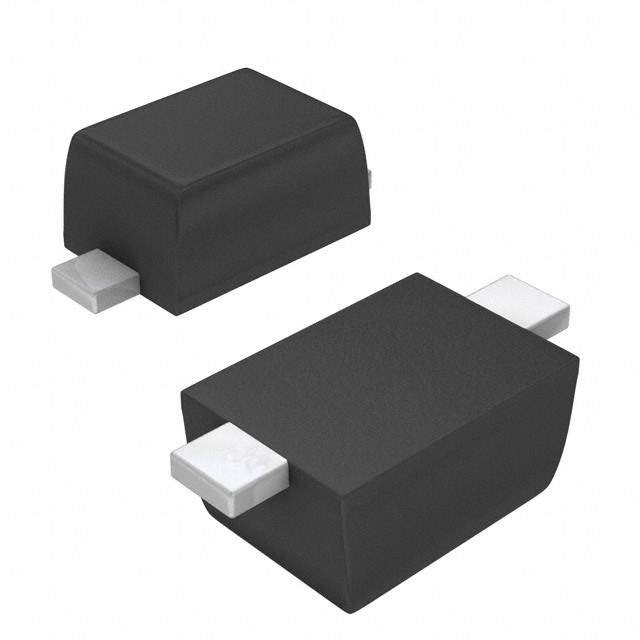

The package type for this Zener diode is the SOD-523, which is a small and compact surface-mount package. This allows for high-density mounting and is suitable for use in space-constrained applications. The small size does not compromise the diode's performance, as it is designed to maintain stability over a wide range of temperatures, with an operating junction temperature range of -65°C to +150°C.

One of the key features of the DDZ9689T-7 is its low dynamic impedance, which ensures a stable Zener voltage under varying current conditions. Additionally, the diode exhibits excellent leakage characteristics, with a maximum leakage current of only 1µA at 1V, which is particularly important for low current applications.

The DDZ9689T-7 is also characterized by its fast response time, which is crucial for protecting sensitive electronic components from voltage spikes and transients. It is RoHS compliant and free from lead and other environmentally sensitive materials, making it a suitable choice for eco-friendly products and applications.

In summary, the DDZ9689T-7 Zener diode from Diodes Incorporated is a robust, precise, and reliable component that offers excellent performance for voltage regulation and protection in a wide array of electronic circuits.
