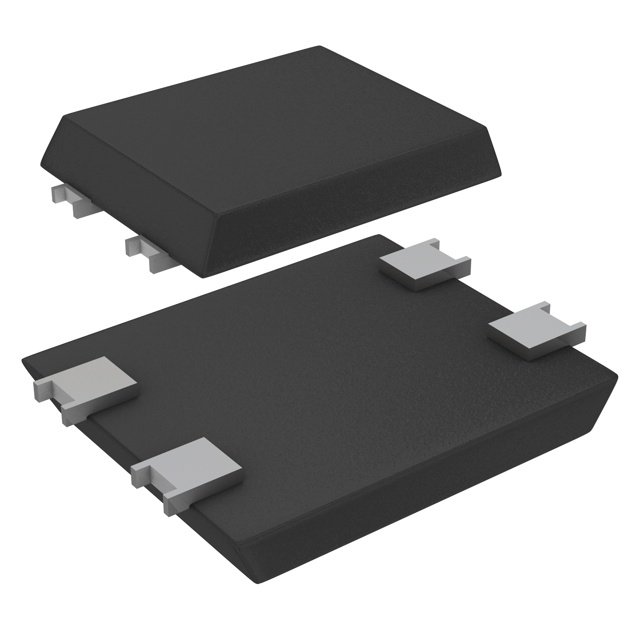

The DBF310-13 from Diodes Incorporated is a high-performance Schottky barrier rectifier designed for applications requiring low voltage drop and high current capability. The device is housed in a robust and compact SMC package, making it ideal for space-constrained applications while providing excellent power dissipation characteristics.

Key Features:

• Low Forward Voltage Drop: The DBF310-13 offers a low forward voltage drop, which enhances system efficiency by reducing power loss during operation.
• High Current Capability: With its ability to handle high currents, this Schottky barrier rectifier is suitable for a wide range of power conversion applications.
• Robust SMC Package: The device's surface-mount SMC package ensures a compact footprint and is designed for high thermal performance.
• Guard Ring Die Construction: The guard ring design provides transient over-voltage protection, enhancing the reliability and longevity of the device.
• Lead-Free and RoHS Compliant: The DBF310-13 is environmentally friendly, adhering to current lead-free and RoHS standards, which restrict hazardous substances in electronic components.

Applications:

The DBF310-13 is versatile and can be used in a variety of applications, including:

• Power Supply Units (PSUs)
• DC-DC Converters
• Automotive Applications
• Free-Wheeling Diodes
• Polarity Protection Devices

Specifications:

Parameter Value Package Type SMC Maximum Average Forward Current 3A Peak Repetitive Reverse Voltage 100V Operating Temperature Range -55°C to +150°C

In conclusion, the DBF310-13 Schottky barrier rectifier from Diodes Incorporated stands out for its efficiency, high current capacity, and compact packaging, making it an excellent choice for designers looking to optimize power management in their electronic systems.
