The D5V0L1B2LPS-7B is a cutting-edge electronic component designed and manufactured by Diodes Incorporated, a leading global provider and innovator in the semiconductor market. This product is a part of the highly efficient and robust family of TVS (Transient Voltage Suppressor) diodes that are engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and electrostatic discharge (ESD).

Key Features

• Low Clamping Voltage: The device offers excellent clamping voltage characteristics, ensuring that any transient voltage spikes are quickly suppressed to safe levels, thereby protecting the integrity of the electronic circuit.
• Low Capacitance: With its low loading capacitance, the D5V0L1B2LPS-7B is ideal for protecting high-speed data lines without significantly affecting signal integrity.
• ESD Protection: It is capable of withstanding ESD events, adhering to the IEC 61000-4-2 standard, which makes it suitable for applications that require stringent ESD protection.

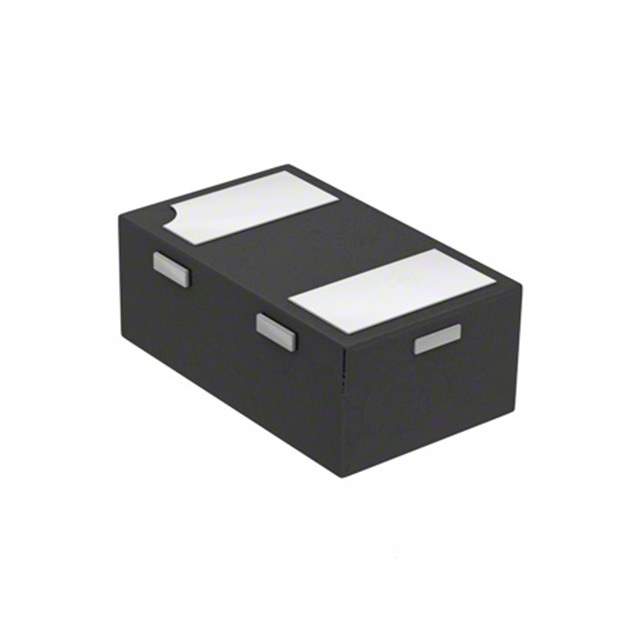

• Small Package Size: The product comes in a small, leadless package design (X1-DFN1006-2), which allows for high-density mounting on PCBs and is perfect for space-constrained applications.
• RoHS Compliant: In line with environmental standards, the D5V0L1B2LPS-7B is RoHS compliant, minimizing the use of hazardous substances in electronic components.

Applications

The D5V0L1B2LPS-7B TVS diode is versatile and can be used in a variety of applications, including:

• Mobile Devices
• Portable Electronics
• High-Speed Data Lines
• USB Interfaces
• Network Communications
• Computer Peripherals

Product Specifications

The D5V0L1B2LPS-7B has a unidirectional configuration and is designed to operate in a wide temperature range, ensuring reliability across diverse operating conditions. Its low dynamic resistance allows for better performance in clamping voltage, and the device can handle high transient power dissipation, making it a robust choice for surge protection.

Conclusion

With its combination of low capacitance, high ESD tolerance, small package size, and environmental compliance, the D5V0L1B2LPS-7B from Diodes Incorporated is an ideal solution for designers looking to enhance the durability and longevity of their electronic products. Its ability to protect sensitive components from voltage transients makes it a valuable addition to any high-performance electronic system.
