Product Overview: D5V0F1U2LP-7B from Diodes Incorporated

The D5V0F1U2LP-7B is a robust, high-performance transient voltage suppression (TVS) diode designed by Diodes Incorporated to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning. This compact, surface-mount device is an ideal solution for implementing in a variety of applications including mobile phones, portable devices, power supplies, and networking equipment.

Key Features

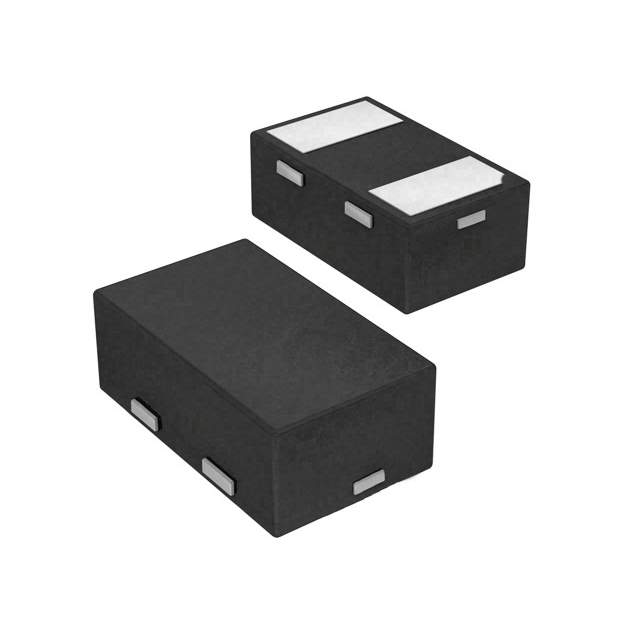

• Low Profile Package: The D5V0F1U2LP-7B comes in an ultra-small X1-DFN1006-2 package, making it suitable for space-constrained applications.
• High Surge Capability: It is capable of withstanding surge events, offering a peak pulse power dissipation of 200W (@10/1000μs waveform).
• Low Clamping Voltage: The device provides excellent clamping characteristics, ensuring that sensitive components are protected from overvoltage conditions.
• Low Leakage Current: Minimizing power loss, it features a low leakage current of less than 0.1µA at the working voltage, contributing to the energy efficiency of the end product.
• Fast Response Time: With a response time typically less than 1ns from 0V to BV min, it ensures quick protection for sensitive circuits.

Electrical Characteristics

The D5V0F1U2LP-7B is designed to operate over a wide voltage range with a stand-off voltage of 5V, making it suitable for protecting 5V bus and other voltage lines. The device can handle a maximum reverse peak pulse current (Ipp) of 40A, ensuring robust protection against transient events.

Applications

• ESD protection for high-speed data lines
• USB power and data line protection
• Protection for smartphones, portable devices, and wearable technology
• Microcontroller input protection
• Protection for power supply lines

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the D5V0F1U2LP-7B is no exception. It is RoHS compliant and meets the ISO 9001 and ISO 14001 standards, ensuring high reliability and environmental sustainability. The device also adheres to the IEC 61000-4-2 (ESD) standard, with an air discharge rating of ±15kV and contact discharge rating of ±8kV, providing confidence in its protective capabilities in challenging electrical environments.

With its combination of features, the D5V0F1U2LP-7B from Diodes Incorporated is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
