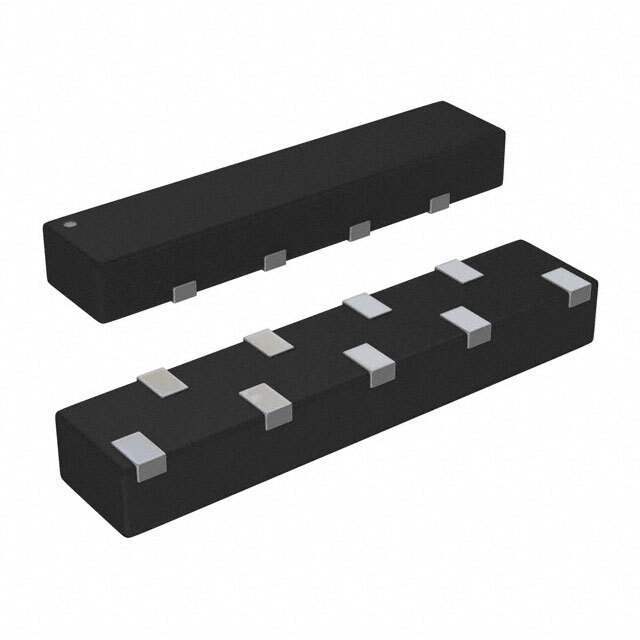

D3V3X8U9LP3810-7Diodes Incorporated
Same model may have multiple batches, images only for reference.

D3V3X8U9LP3810-7

Part No D3V3X8U9LP3810-7
Manufacturer Diodes Incorporated
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 7VC U-DFN3810-9
Datasheet
D3V3X8U9LP3810-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Circuit Protection >Transient Voltage Suppressors (TVS) >TVS Diodes
Part Status Active
Type Zener
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 5.5V
Voltage - Clamping (Max) @ Ipp 7V (Typ)
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power - Peak Pulse 20W
Applications General Purpose
Capacitance @ Frequency 0.45pF @ 1MHz
Mounting Type Surface Mount
Package / Case 9-UDFN
Win Source Part Number WS1310374-D3V3X8U9LP3810-7
Ultra Librarian 3D Model Ultra Librarian D3V3X8U9LP3810-7 CAD Model

Description

The D3V3X8U9LP3810 is a high-performance device suitable for protecting four high speed I/Os. These devices are assembled in UDFN3810-9 (Type B) package and have high ESD surge capability, low ESD clamping voltage and ultra-low capacitance.
