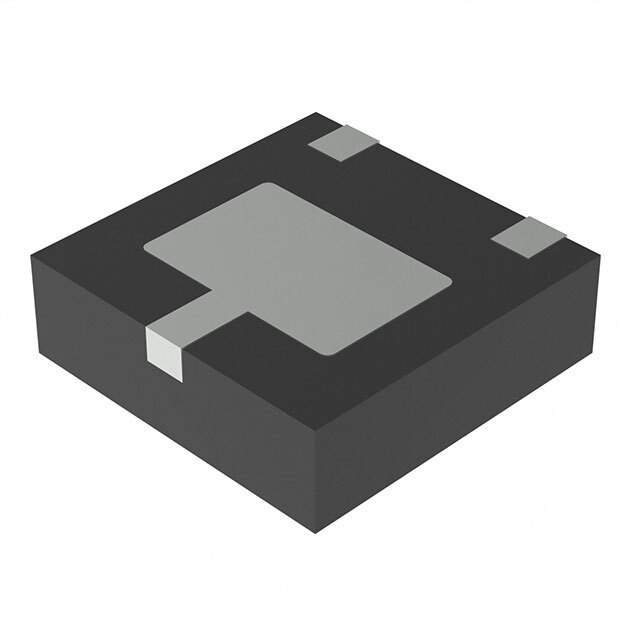

Product Overview: D22V0S1U3LP20-7 by Diodes Incorporated

The D22V0S1U3LP20-7 is a cutting-edge transient voltage suppressor (TVS) diode, expertly designed by Diodes Incorporated to provide robust protection for sensitive electronics. This component is an essential safeguard against voltage spikes and surges that can occur due to sudden power disturbances, lightning strikes, or electrostatic discharge (ESD) events. With its ultra-small footprint, the D22V0S1U3LP20-7 is particularly well-suited for space-constrained applications where board real estate is at a premium.

Key Features

• Low Profile: The device comes in a compact X1-DFN1006-2 package, making it an ideal choice for portable and miniaturized electronic devices.
• High Surge Capability: It is designed to withstand IEC61000-4-5 surge events, ensuring reliable protection in harsh electrical environments.
• Low Clamping Voltage: The TVS diode offers a low dynamic resistance and clamping voltage, providing superior protection for sensitive components.
• Fast Response Time: The D22V0S1U3LP20-7 responds swiftly to transient events, minimizing the risk of damage to the protected circuit.
• Lead-Free and RoHS Compliant: This product meets environmental standards, ensuring compatibility with green manufacturing processes.

Applications

The versatility of the D22V0S1U3LP20-7 allows it to be used in a wide array of applications, including but not limited to:

• Mobile Handsets
• Portable Electronics
• Power Supply Lines
• Data Lines
• Signal Lines

Quality and Reliability

Diodes Incorporated is committed to delivering products that meet the highest standards of quality and reliability. The D22V0S1U3LP20-7 is no exception, having undergone rigorous testing to ensure it performs under the most demanding conditions. Customers can trust this TVS diode to provide consistent, long-term protection for their electronic devices.

Conclusion

With its combination of compact size, high performance, and environmental compliance, the D22V0S1U3LP20-7 from Diodes Incorporated represents an excellent choice for designers looking to enhance the durability and longevity of their electronic products. Whether deployed in consumer gadgets or industrial equipment, this TVS diode is engineered to deliver top-notch transient voltage suppression, safeguarding the integrity of electronic systems in any application.
