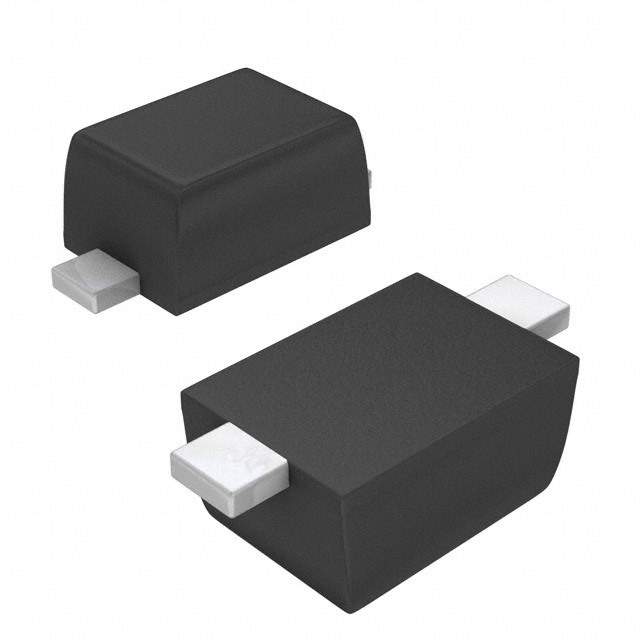

The BAT54WT-7 is a surface-mount Schottky diode from Diodes Incorporated, renowned for its high efficiency and low voltage drop. This diode is housed in a small SOT-323 package, making it ideal for space-constrained applications. It is commonly used in high-frequency systems and portable electronic devices due to its compact size and superior electrical performance.

Key Features

• Low Forward Voltage Drop: The BAT54WT-7 offers a low forward voltage drop, typically around 0.35V at 10mA, which enhances the overall efficiency of the circuit in which it is used.
• High Current Capacity: Despite its small size, this diode supports a continuous forward current of 200mA, making it suitable for a variety of applications.
• Fast Switching Speed: With its Schottky barrier design, the BAT54WT-7 ensures fast switching capabilities, which is crucial for high-speed circuitry and signal demodulation.
• Low Capacitance: The device has low capacitance, which is beneficial for high-frequency applications as it minimizes signal distortion and loss.
• Surface-Mount Package: The SOT-323 package allows for efficient PCB space utilization and is compatible with automated assembly processes, reducing manufacturing costs and time.

Applications

The BAT54WT-7 is versatile and can be used in a wide range of electronic circuits. Common applications include:

• Power management systems
• DC-DC converters
• Reverse polarity protection circuits
• Low voltage rectification
• High-frequency inverters
• RFID and wireless communication devices

Product Specifications

With its robust performance and small footprint, the BAT54WT-7 Schottky diode from Diodes Incorporated is an excellent choice for engineers looking to optimize their high-frequency and power-sensitive applications.
