Introducing the B320AF-13 Schottky Barrier Rectifier from Diodes Incorporated

Diodes Incorporated presents the B320AF-13, a high-performance Schottky barrier rectifier designed for applications requiring low voltage drop and high efficiency. This rectifier is a perfect choice for power supply design, particularly in compact and energy-sensitive electronics.

Key Features

• Low Forward Voltage Drop: The B320AF-13 boasts a low forward voltage drop, which enhances system efficiency by reducing power loss during operation.
• High Current Capability: With a maximum average rectified current of 3A, this component can handle significant current, making it suitable for a wide range of applications.
• High Surge Current Capability: The device is capable of withstanding high surge currents, ensuring reliability and robustness in demanding situations.
• Power Dissipation: Rated at 1.5W, the B320AF-13 is able to dissipate heat effectively, contributing to its overall longevity and stability.

Electrical Characteristics

The B320AF-13 operates with a maximum repetitive peak reverse voltage of 20V, and its low forward voltage drop ensures that the power loss is minimized during conduction. Its operating junction temperature ranges from -55°C to +150°C, which allows it to perform reliably in a variety of environmental conditions.

Package and Mounting

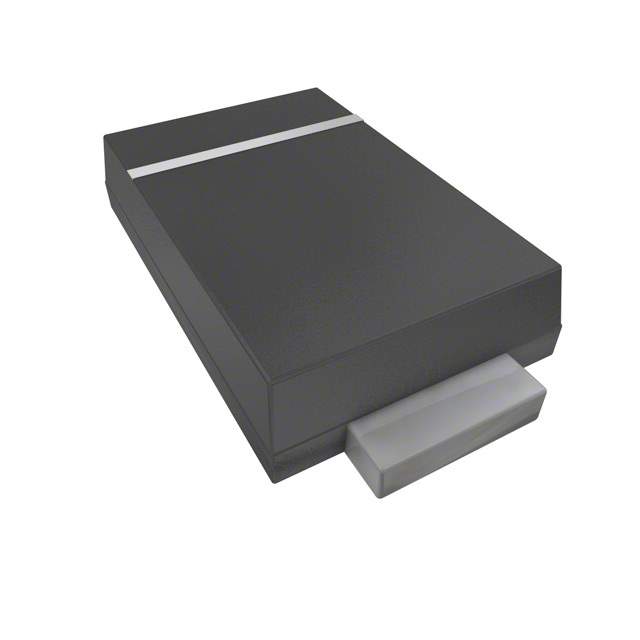

Encased in a SMA (DO-214AC) package, the B320AF-13 is designed for surface mount applications, providing ease of integration into PCB designs. Its compact form factor is ideal for space-constrained applications while offering excellent thermal performance.

Applications

The B320AF-13 is versatile and can be used in a multitude of applications, including:

• DC/DC Converters
• Power Supply Units
• Free-Wheeling Diodes
• Reverse Battery Protection
• Or-ing Diode
• Switching Power Supplies

With its combination of efficiency, reliability, and versatility, the B320AF-13 from Diodes Incorporated is an excellent choice for designers looking to enhance their power management solutions. Whether it's for consumer electronics, automotive systems, or industrial equipment, the B320AF-13 delivers performance that can be relied upon.
