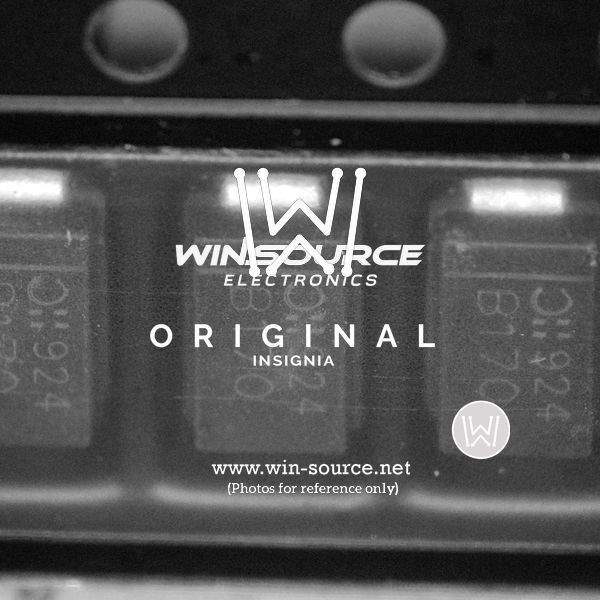

The B170-13-F from Diodes Incorporated is a robust and high-performance Schottky barrier rectifier designed for applications requiring efficient and reliable power management. This component is a preferred choice for engineers due to its low forward voltage drop and high surge current capability, making it suitable for a diverse range of electronic circuits.

Key Features:

• High Current Capability: With an impressive average rectified output current of 1.0A, the B170-13-F is capable of handling significant power requirements.
• Low Forward Voltage Drop: The device's forward voltage drop is minimal, typically just 0.85V at 1.0A, ensuring efficient operation and reduced energy loss.
• High Surge Capability: It offers a surge overload rating of 40A peak, providing excellent tolerance to surge currents and enhancing the reliability of the application.
• Power Dissipation: The B170-13-F has a power dissipation of 3.1W, allowing it to manage power effectively without overheating.
• Compact Package: Encased in an SMB package, it is not only space-efficient but also easy to integrate into a variety of designs.

Applications:

The versatility of the B170-13-F makes it an ideal choice for a wide array of applications, including:

• Low voltage, high frequency inverters
• Free-wheeling and polarity protection applications
• Power supply circuits
• DC/DC converters
• Automotive configurations

Electrical Characteristics:

The B170-13-F boasts a maximum repetitive peak reverse voltage of 70V, ensuring it can withstand high reverse voltages without failure. Its operating junction temperature ranges from -65°C to 150°C, making it suitable for use in extreme environmental conditions.

Quality and Reliability:

Backed by Diodes Incorporated's commitment to quality, the B170-13-F is a product that assures long-term reliability. It conforms to RoHS standards, ensuring environmental compliance and suitability for use in green products.
