Introducing the AP2553AFDC-7 from Diodes Incorporated

The AP2553AFDC-7 is a state-of-the-art, single-channel integrated circuit (IC) from Diodes Incorporated, designed to provide a reliable and efficient power distribution solution for a variety of electronic devices. This high-performance IC is particularly suited for applications requiring precise control of USB power delivery, thanks to its advanced features and robust design.

Key Features

• Adjustable Current Limiting: The AP2553AFDC-7 offers an adjustable current limit function, which can be set by external resistors. This ensures protection for USB ports by controlling the amount of current that can be drawn by connected devices.
• Over-Temperature Protection: Safety is a top priority for Diodes Incorporated. The AP2553AFDC-7 is equipped with an over-temperature protection feature that automatically shuts down the output if the IC's temperature exceeds a certain threshold, preventing overheating and potential damage.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the device operates at the correct voltage levels, enhancing the reliability and longevity of both the AP2553AFDC-7 and the host device.
• Soft-Start Capability: To prevent inrush current at startup, the AP2553AFDC-7 is designed with a soft-start mechanism that gradually ramps up the output current, thereby minimizing stress on the power source and extending the life of the system.

Applications

The versatility of the AP2553AFDC-7 allows it to be used in a wide range of applications, including but not limited to:

• USB hubs and docking stations
• Consumer electronics such as smartphones, tablets, and cameras
• Peripheral devices for computers and laptops
• Charging cradles and stations for wearable technology

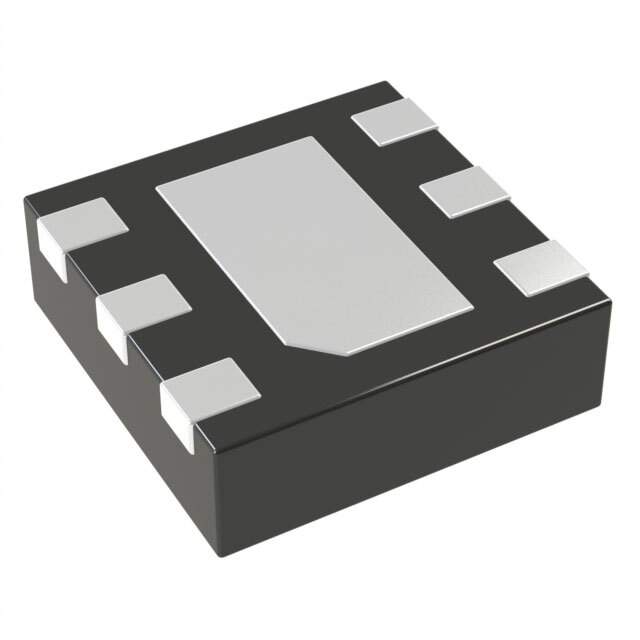

With its compact size, the AP2553AFDC-7 comes in a 6-pin DFN2020 package, making it an ideal choice for space-constrained applications. Its high level of integration ensures a reduced component count and simplifies circuit design, leading to cost-effective and highly efficient power management solutions.

Whether you're developing the next generation of USB-powered gadgets or looking to enhance the safety and efficiency of existing products, the AP2553AFDC-7 from Diodes Incorporated is a reliable power management solution that meets the rigorous demands of modern electronics.
