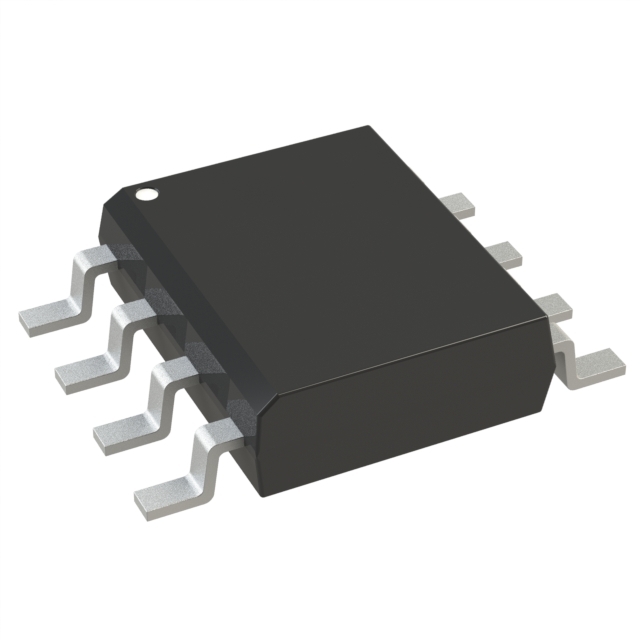

Same model may have multiple batches, images only for reference.
AL8866QSP-13 Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AL8866QSP-13

Part No AL8866QSP-13
Manufacturer Diodes Incorporated
Catalog External/Internal (Off - Board) LED Drivers
Description LED MV INT SWITCH SO-8EP T&R 2.5
Datasheet
AL8866QSP-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Type DC DC Controller
Topology SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 1
Voltage - Supply (Min) 4.7V
Voltage - Supply (Max) 85V
Voltage - Output 20V
Frequency 400kHz
Dimming Analog, PWM
Applications Automotive
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Qualification AEC-Q100
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package 8-SO-EP
Ultra Librarian 3D Model Ultra Librarian AL8866QSP-13 CAD Model
