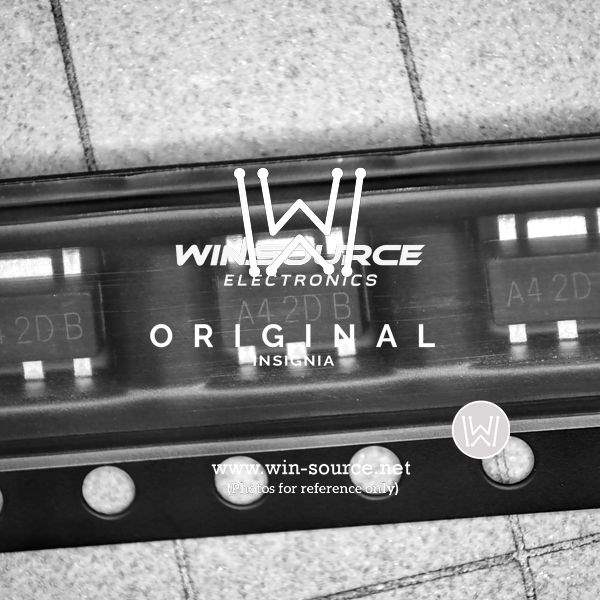

Product Overview: AL8861Y-13 from Diodes Incorporated

The AL8861Y-13 is a highly efficient, step-down DC/DC converter designed by Diodes Incorporated. This product is specifically engineered to meet the needs of high-performance power regulation applications. It is an ideal solution for driving single or multiple series-connected LEDs efficiently from a voltage source higher than the LED voltage.

Key Features

• High Efficiency: With an efficiency of up to 97%, the AL8861Y-13 ensures minimal power loss during the conversion process, making it suitable for energy-sensitive applications.
• Wide Input Voltage Range: The device operates from an input voltage range of 5V to 60V, accommodating a diverse set of power sources and varying input conditions.
• Integrated MOSFET: The inclusion of a built-in power MOSFET simplifies the circuit design and reduces external component count, leading to a compact and reliable end product.
• Adjustable Output Current: Users can set the output current up to 1A which allows for flexibility in driving different LED configurations while maintaining high brightness and uniformity.
• Thermal Protection: The AL8861Y-13 comes with built-in over-temperature protection that safeguards the device and the system under high-temperature operating conditions.
• PWM and Analog Dimming: The device supports both PWM and analog dimming capabilities, granting precise control over the brightness levels of the LEDs.

Applications

The AL8861Y-13 is versatile and can be used in a variety of applications, including but not limited to:

• LED backlighting for TVs and monitors
• Architectural lighting
• General illumination
• Signage and decorative LED lighting
• Automotive lighting systems

With its robust design and comprehensive feature set, the AL8861Y-13 from Diodes Incorporated is a reliable choice for designers looking to create efficient, high-performance LED lighting solutions.
