The AH5792-ZG-7 is a state-of-the-art Hall Effect Sensor IC designed and manufactured by Diodes Incorporated, a leading global provider of high-quality semiconductor products. This sensor is specifically engineered to meet the demanding requirements of precision magnetic field detection in a wide array of applications.

Key Features

• High Sensitivity: The AH5792-ZG-7 is equipped with a highly sensitive Hall Effect plate that ensures accurate detection of magnetic fields, even at low flux densities.
• Chopper-Stabilized Design: This sensor incorporates a chopper-stabilized amplifier, which minimizes the offset drift and provides stable operation over a wide temperature range.
• Low Power Consumption: It is designed for energy efficiency, making it suitable for battery-powered applications where power conservation is crucial.
• Omni-Polar Detection: The device can detect both North and South poles, which simplifies magnet selection and system design.
• Robust Output: The output of the AH5792-ZG-7 is a digital signal that switches in the presence of a sufficient magnetic field, making it easy to interface with other digital components.

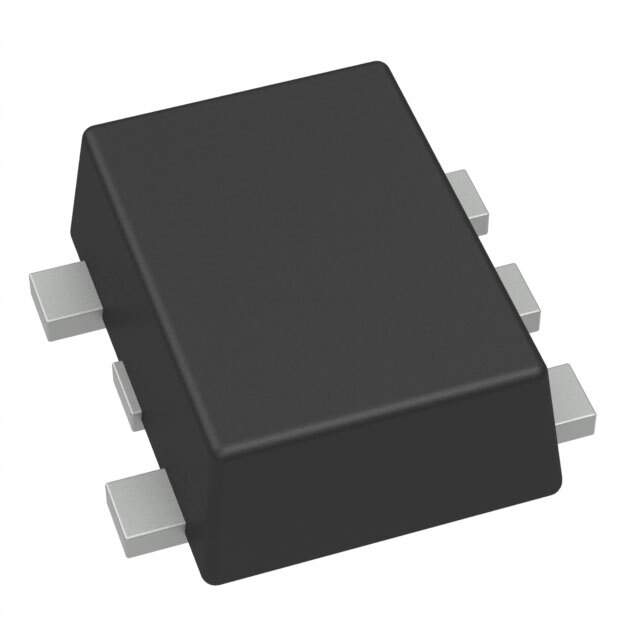

• Miniature Package: Housed in a small SOT553 package, the sensor is ideal for space-constrained applications.

Applications

The versatility of the AH5792-ZG-7 makes it suitable for a broad range of applications including, but not limited to:

• Position and proximity sensing
• Open and close detection for smart devices
• Flow meters
• Brushless DC motor commutation
• Speed and RPM sensing

Product Specifications

The AH5792-ZG-7 operates within a supply voltage range of 2.5V to 3.5V and features an operating temperature range from -40°C to +85°C. With its built-in reverse blocking diode, it is protected against reverse supply conditions, ensuring reliable performance and longevity in harsh environments.

Conclusion

In conclusion, the AH5792-ZG-7 from Diodes Incorporated is an efficient, reliable, and versatile Hall Effect Sensor that offers a compact solution for designers looking to incorporate magnetic field detection into their systems. Its robust feature set and ease of use make it an excellent choice for a wide array of industrial, consumer, and automotive applications.
