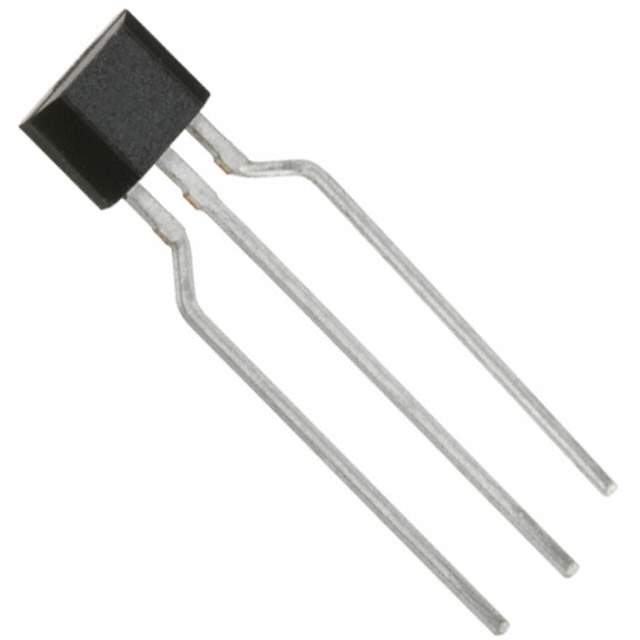

Product Overview: AH3776-P-A from Diodes Incorporated

The AH3776-P-A is a high-precision, micropower Hall effect switch IC designed by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This integrated circuit is tailored for battery-powered consumer and industrial equipment, where energy efficiency and accuracy are paramount.

With its advanced chopper-stabilized architecture, the AH3776-P-A ensures minimal drift over temperature and stress, providing consistent switching points throughout its operating range. The device is sensitive to magnetic fields and can detect the presence or absence of a magnetic object, making it ideal for position and speed sensing applications.

The AH3776-P-A operates over a wide voltage range from 2.5V to 5.5V, accommodating various power supplies and making it suitable for portable devices. Its low average current consumption, typically at 24μA, extends battery life, which is critical for handheld and wearable gadgets.

This Hall effect switch comes in a small and thin package, the SOT553, which is perfect for space-constrained applications. Its robust design allows for operation in harsh environments with an operating temperature range of -40°C to +85°C. Additionally, the AH3776-P-A features high ESD protection, safeguarding the device against electrostatic discharges during handling and operation.

Diodes Incorporated has equipped the AH3776-P-A with an omnipolar magnetic sensing capability, which means it can be activated by both north and south poles of a magnet. This feature simplifies the installation process, as there is no need to consider the magnet's polarity during assembly.

In summary, the AH3776-P-A is a versatile and reliable choice for designers who need a compact, energy-efficient, and precise Hall effect switching solution. Its integration into consumer electronics, home appliances, and industrial equipment helps enhance the performance and reliability of end products.
