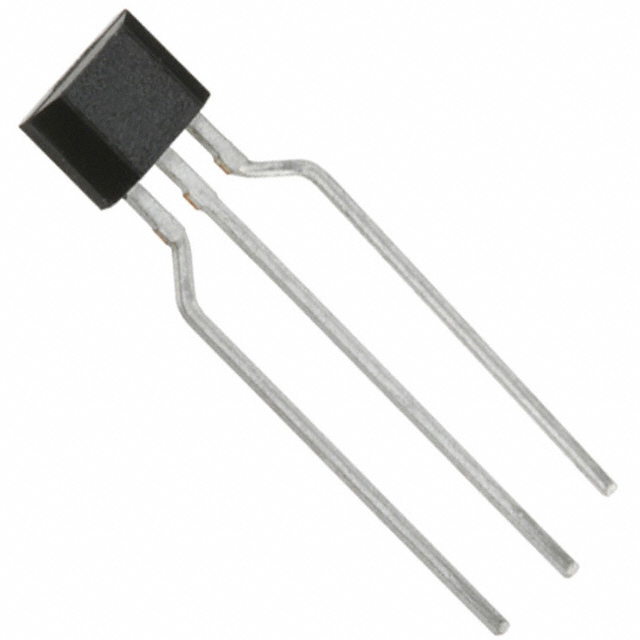

Product Overview: AH1807-P-A from Diodes Incorporated

The AH1807-P-A is a high-performance, unipolar Hall effect switch IC designed and manufactured by Diodes Incorporated, a leading global provider of semiconductor products. This device is engineered to detect the presence of a magnetic field and is commonly used in a variety of applications ranging from industrial automation to consumer electronics.

Key Features

• Operating Voltage: The AH1807-P-A operates within a wide voltage range of 2.5V to 5.5V, making it versatile for use in different circuit configurations and compatible with many types of microcontrollers and systems.
• High Sensitivity: With its high magnetic sensitivity, this Hall effect switch can accurately detect magnetic fields from a permanent magnet or an electromagnet, providing reliable switching for precise applications.
• Unipolar Switching: The device is designed to operate as a unipolar switch, which means it turns on in the presence of a south pole magnetic field and turns off when the field is removed.
• Chopper Stabilized Design: The AH1807-P-A features a chopper stabilized design that enhances stability and performance by reducing signal offset and drift due to temperature changes and stress.
• Output Type: It offers an open-drain output, which allows for easy interfacing with other circuit components and provides the flexibility to connect a pull-up resistor to a voltage level that suits the application requirements.
• Robust Protection: The device is equipped with protection features such as reverse blocking diode, output short-circuit protection, and a Zener clamp which guards against overvoltage conditions.

Applications

• Industrial automation systems
• Position and speed sensing
• Motor control
• Flow meters
• Consumer electronics

The AH1807-P-A Hall effect switch is packaged in a small and low-profile SOT553 package, making it suitable for space-constrained applications. Its operational temperature range from -40°C to +85°C allows it to perform reliably in harsh environments. With its high sensitivity and robust design, the AH1807-P-A from Diodes Incorporated is an excellent choice for designers looking for a dependable and efficient solution to incorporate magnetic field detection into their projects.
