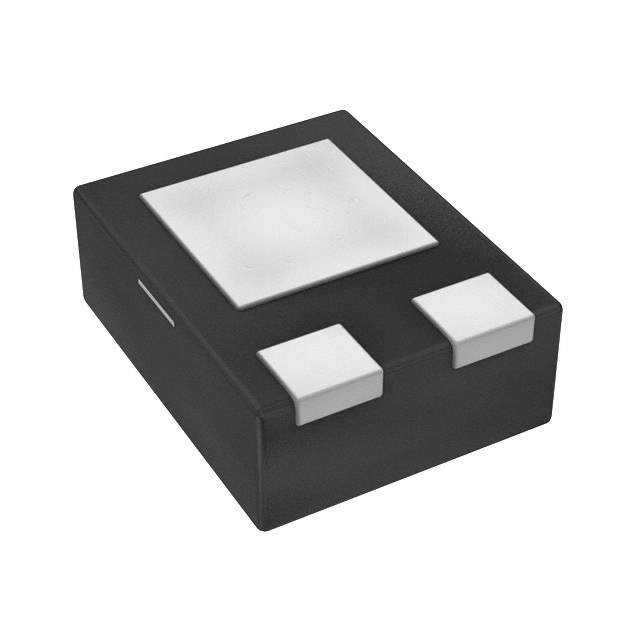

Product Overview: AH1801-FJG-7 Hall Effect Sensor

The AH1801-FJG-7 is a high-performance, unipolar Hall effect switch produced by Diodes Incorporated, a leading manufacturer in the semiconductor market. This sensor is designed for detecting the presence of magnetic fields and is widely used across various applications, such as position sensing, proximity detection, and speed measurement in industrial, consumer, and automotive markets.

Key Features

• Unipolar Hall Effect Switch: The AH1801-FJG-7 operates as a unipolar switch, which means it is activated by a positive magnetic field and is not affected by a negative magnetic field, ensuring reliable and consistent performance.
• High Sensitivity: This sensor has a high magnetic sensitivity, which allows for the detection of weak magnetic fields, making it ideal for a wide range of applications.
• Low Power Consumption: Designed with energy efficiency in mind, the AH1801-FJG-7 has a low operating current, which is crucial for battery-powered and portable devices.
• Chopper Stabilized Design: The inclusion of a chopper-stabilized design enhances stability, reduces signal drift, and improves accuracy over temperature variations and time.
• Operating Range: The sensor can operate within a wide voltage range, typically from 2.5V to 5.5V, making it versatile for different circuit designs.

Applications

Due to its robustness and reliability, the AH1801-FJG-7 is suitable for a variety of applications, including but not limited to:

• Open and close detection in smart home devices.
• Position sensing in industrial automation systems.
• Proximity detection in consumer electronics.
• Speed and revolution counting in automotive applications.

Product Specifications

Parameter Value Part Number AH1801-FJG-7 Manufacturer Diodes Incorporated Supply Voltage 2.5V to 5.5V Output Type Open Drain Package SC-59 Operating Temperature -40°C to +85°C

The AH1801-FJG-7 is available in a compact SC-59 package, which is suitable for space-constrained applications. With its robust design and precise performance, the AH1801-FJG-7 from Diodes Incorporated stands out as a reliable choice for designers and engineers looking for an effective solution to their Hall effect sensing needs.
