Product Overview: 74LVC1G14FS3-7 by Diodes Incorporated

The 74LVC1G14FS3-7 is a high-performance, single-gate inverter with Schmitt-trigger input from Diodes Incorporated, designed to operate from a 1.65 to 5.5V power supply. This makes it suitable for a wide range of applications, from battery-operated devices to high-end communication equipment. The device is part of the 74LVC series, which is renowned for its low-voltage operation and low power consumption.

With its Schmitt-trigger action, the 74LVC1G14FS3-7 provides a hysteresis which enhances noise immunity and allows the device to be used as a debouncer or in signal conditioning applications to transform slowly changing input signals into sharply defined jitter-free output signals. This feature is particularly useful in environments with high electrical noise or when used with slow input edge rates.

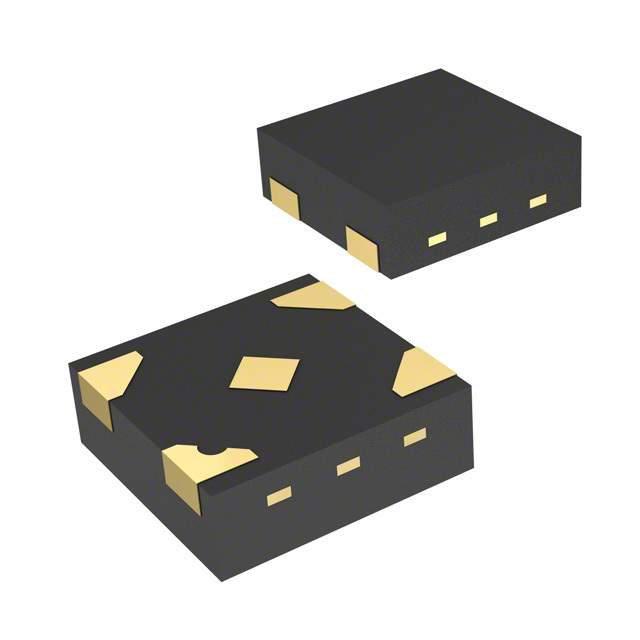

The device is offered in a very small leadless package, the DFN1010-3 (SOT883), which is optimized for space-constrained applications. Its small footprint makes it an excellent choice for portable electronics, where space and weight are critical considerations. Despite its small size, the 74LVC1G14FS3-7 does not compromise on performance, offering high-speed operation with a propagation delay typically only 3.7ns when powered by a 5V supply.

One of the key features of the 74LVC1G14FS3-7 is its 5V tolerant inputs, which allow for interfacing with 5V logic levels without the need for additional level shifting. This is particularly beneficial when integrating the device into mixed-voltage systems. The product also ensures a low static and dynamic power consumption, with a typical quiescent current of only 10µA, which is essential for power-sensitive designs.

Additional technical features include its ability to drive up to 50Ω transmission lines, its unlimited input rise and fall times which make it compatible with a wide range of input waveforms, and its compliance with JEDEC standard no. 8-1A. The 74LVC1G14FS3-7 is also characterized for operation from -40°C to +125°C, ensuring reliable function in extreme temperature environments.

In summary, the 74LVC1G14FS3-7 from Diodes Incorporated is a versatile, high-performance inverter that is ideal for a plethora of applications requiring low power consumption, noise immunity, and small package size without sacrificing operational speed and reliability.
