Diodes Incorporated 74AUP1G09FX4-7

The 74AUP1G09FX4-7 is a high-performance, single 2-input AND gate with open-drain output, part of the advanced ultra-low power (AUP) family, produced by Diodes Incorporated. This logic gate is designed for operation with a power supply range of 0.8V to 3.6V, making it particularly suitable for battery-operated and portable applications where power efficiency is a critical factor.

Featuring a very low static and dynamic power consumption, the 74AUP1G09FX4-7 boasts an extremely low input capacitance and high-speed operation, which is achieved by employing an advanced 6T/8T technology. This technology allows for the device to operate with a near-threshold voltage, thus reducing the power required for switching operations.

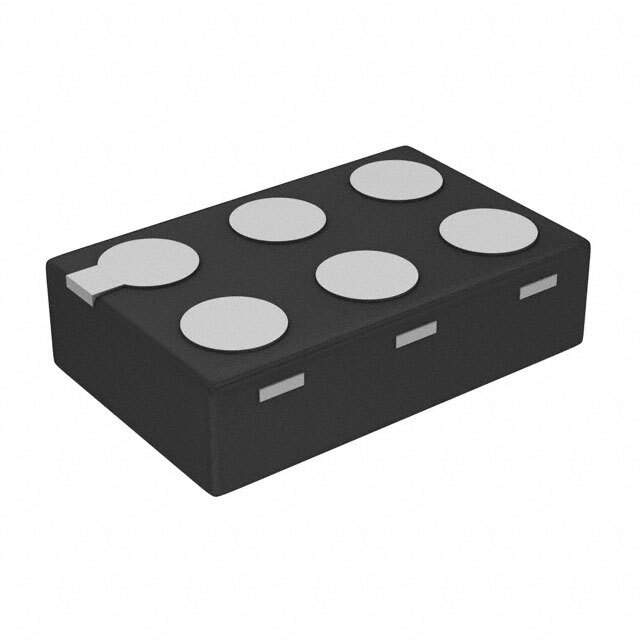

The device is housed in an ultra-small and leadless X2-DFN1410-6 (Type B) package, which not only saves space on the PCB but also enhances thermal performance and reduces inductance, allowing for faster and more stable operations. The small footprint of the package makes it an excellent choice for space-constrained applications such as smartphones, wearable technology, and IoT devices.

Key features of the 74AUP1G09FX4-7 include:

• Wide operating voltage range (0.8V to 3.6V)
• Low static power consumption (ICC = 0.9 μA max)
• Low dynamic power consumption (Cpd = 4.3 pF typical)
• High noise immunity
• Ultra-small, leadless package for space-saving (X2-DFN1410-6)
• High-speed operation
• Compliance with RoHS and Green Device requirements

The 74AUP1G09FX4-7 is suitable for a wide variety of applications including, but not limited to, logic level shifting, signal gating, and as a basic building block in digital circuits requiring low power consumption. Its compliance with RoHS and Green Device standards also ensures that it meets the environmental regulations, making it a responsible choice for modern electronic designs.
