Same model may have multiple batches, images only for reference.

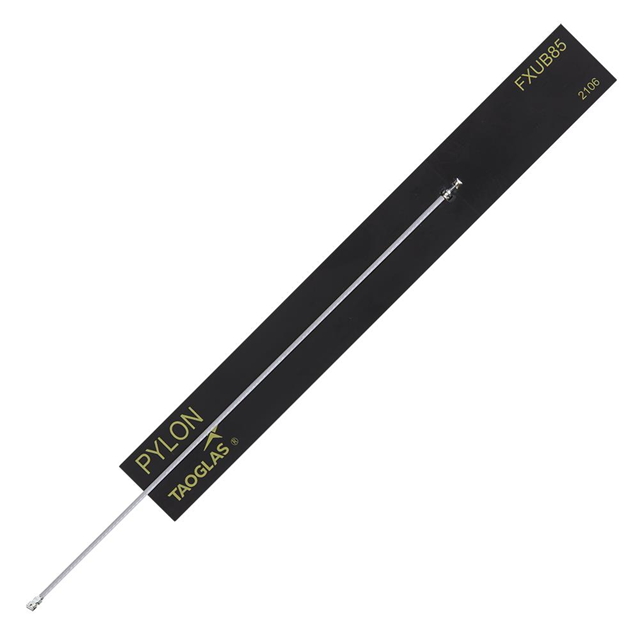

FXUB85.54.0150C Real Image
Same model may have multiple batches, images only for reference.

FXUB85.54.0150C

Part No FXUB85.54.0150C
Manufacturer Taoglas Limited
Catalog RF Antennas
Description ULTRA WIDE BAND FLEX ANTENNA 600 / 788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz 3G, 4G, 5G, LTE, Wi-Fi Flat Patch RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi IPEX MHF4L Adhesive
Datasheet
FXUB85.54.0150C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Series Pylon
Package Bulk
RF Family/Standard Cellular, WiFi
Frequency Group Wide Band
Frequency (Center/Band) 788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz
Frequency Range 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
Antenna Type Flat Patch
Number of Bands 7
Return Loss -6dB, -7dB, -8dB, -11dB, -15dB
Gain 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi
Power - Max 5 W
Features Cable - 150mm
Termination IPEX MHF4L
Mounting Type Adhesive
Height (Max) 0.012" (0.30mm)
Applications 3G, 4G, 5G, LTE, Wi-Fi
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 931-FXUB85.54.0150C
Standard Package 1
Win Source Part Number 1111039-FXUB85.54.0150C
Ultra Librarian 3D Model Ultra Librarian FXUB85.54.0150C CAD Model

Description

The FXUB85.54.0150C RF antenna from Taoglas Limited is a flat patch antenna that has a wide frequency range of 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz.

  • Frequency Range: 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz
  • Gain: 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi
  • Power Max: 5W
