SLG59M1709V Dialog Semiconductor GmbH SLG59M1709V Real Image
Same model may have multiple batches, images only for reference.
SLG59M1709V Dialog Semiconductor GmbH SLG59M1709V Real Image
SLG59M1709V Dialog Semiconductor GmbH SLG59M1709V Real Image
Same model may have multiple batches, images only for reference.

SLG59M1709V

Part No SLG59M1709V
Manufacturer Dialog Semiconductor GmbH
Catalog PMIC - Power Distribution Switches, Load Drivers
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Dialog Semiconductor GmbH
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Supply Voltage - Operating 2.5V ~ 5.5V
Current - Output (Max) 4A
Rds On (Typ) 4mOhm
Input Type CMOS
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

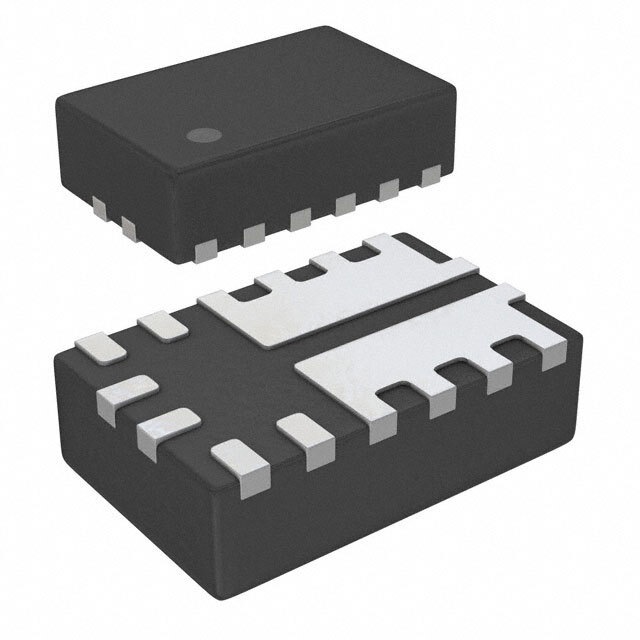

Supplier Device Package 16-STQFN (1.6x2.5)
Package / Case 16-PowerUFQFN
Base Product Number SLG59
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1315594-SLG59M1709V
Ultra Librarian 3D Model Ultra Librarian SLG59M1709V CAD Model

Description

The SLG59M1709V is a high-side load switch integrated circuit designed for general-purpose power distribution applications.

  • Output Current (Max): 4A
  • Rds On (Typ): 4mOhm
  • Supply Voltage Range: 2.5V to 5.5V
  • Temperature Range: -40°C to 85°C
  • Package: 16-PowerUFQFN
  • Supplier Device Package: 16-STQFN (1.6x2.5)
