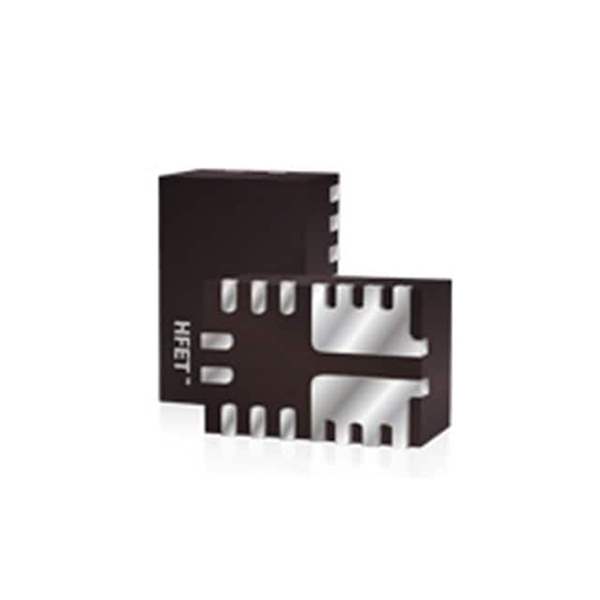

SLG59H1120V Dialog Semiconductor GmbH
Same model may have multiple batches, images only for reference.

SLG59H1120V

Part No SLG59H1120V
Manufacturer Dialog Semiconductor GmbH
Catalog PMIC - Power Distribution Switches, Load Drivers
Datasheet
SLG59H1120V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Dialog Semiconductor GmbH
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Supply Voltage - Operating 4.5V ~ 13.2V
Current - Output (Max) 5A
Rds On (Typ) 18mOhm
Input Type CMOS
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package 18-STQFN (1.6x3)
Package / Case 18-PowerUFQFN
Base Product Number SLG59
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1315876-SLG59H1120V
Ultra Librarian 3D Model Ultra Librarian SLG59H1120V CAD Model

Description

The SLG59H1120V is an integrated circuit designed for power distribution switches and load drivers. It is an N-channel output type with a general-purpose switch type and high-side output configuration. The device has one output and can handle a maximum output current of 5A. The package is a tape and reel type with SMD (SMT) mounting. The device is suitable for use in a temperature range of -40℃ to 85℃ (TA) and operates on a supply voltage range of 4.5V to 13.2V. The MSL level is 1 (unlimited), and the HTSUS code is 8542.39.0001. The manufacturer of the SLG59H1120V is Dialog Semiconductor GmbH.
