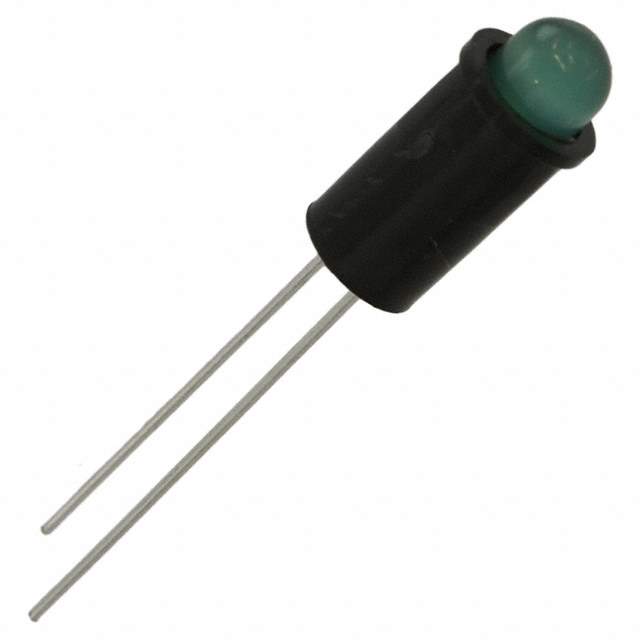

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - Panel Indicators, Pilot Lights
Mfr Dialight
Series 559
Package Bulk
Type LED
Lamp Color Green
Lens Color Green
Lens Transparency Diffused
Ratings Vf (Typ) , If (Max)
Voltage 2.2V
Current 25mA
Panel Cutout Shape Round
Panel Cutout Dimensions 0.25" (6.35mm)
Lens Size 5mm, T-1 3/4
Lens Style Round with Domed Top
Millicandela Rating 34mcd
Wavelength - Peak 563nm
Viewing Angle 50°
Termination Style PC Pin
Base Product Number 5595201
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
California Prop 65 Warning Information
Win Source Part Number 1338897-5595201001F
Ultra Librarian 3D Model Ultra Librarian 5595201001F CAD Model

Description

The Dialight 5595201 series LED panel indicator is a high-quality optoelectronic component designed for use in panel indicators and pilot lights.

  • Termination Style: PC Pin
  • Panel Cutout Shape: Round, 0.25 inches (6.35 mm)
  • Voltage Rating: 2.2V
  • Current Rating: 25mA
  • Millicandela Rating: 34mcd
  • Lens Color: Green
  • Lens Transparency: Diffused
  • Viewing Angle: 50 degrees
  • Lamp Color: Green
  • Peak Wavelength: 563nm
  • Lens Style: Round with a Domed Top
  • Lens Size: 5mm, T-1 3/4
  • ECCN: EAR99
  • HTSUS: 8541.41.0000
