Same model may have multiple batches, images only for reference.

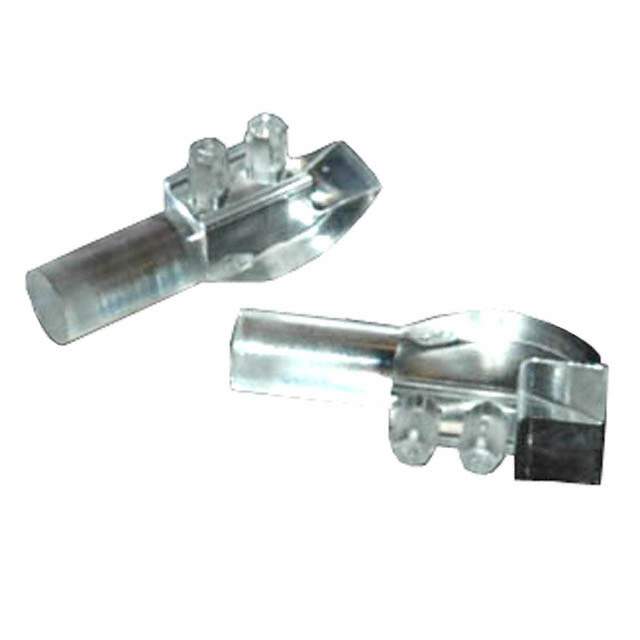

5151049F Real Image
Same model may have multiple batches, images only for reference.

5151049F

Part No 5151049F
Manufacturer Dialight
Catalog Optics - LEDs - Light Pipes
Description LIGHT PIPE SGL ELEMENT  /  Light Pipe Single Clear Rigid Board Mount, Press Fit, Right Angle
Datasheet
5151049F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Optics - Light Pipes
Mfr Dialight
Series 515
Package Bulk
Color Clear
Configuration Single
Type Rigid
Mounting Type Board Mount, Press Fit, Right Angle
Lens Style Round with Flat Top
Lens Size 3.5mm
Base Product Number 5151049
Other Names 350-2175,515-1049F
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1237883-5151049F
Ultra Librarian 3D Model Ultra Librarian 5151049F CAD Model

Description

The Dialight 5151049F is a rigid light pipe.

  • Popularity: medium
  • Standard Package: 200
  • Lens Style: round lens with a flat top
  • Lens Size: 3.5mm
  • Mounting: board mount, press fit, and right angle mounting
  • Manufacturer: Dialight
  • REACH: also REACH unaffected.
