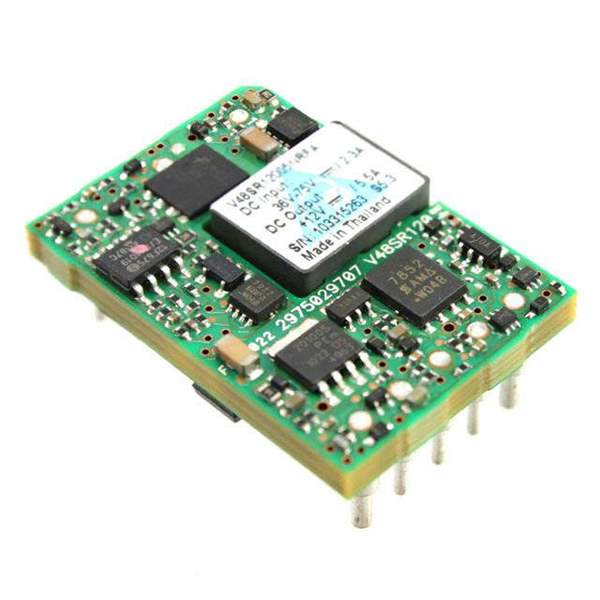

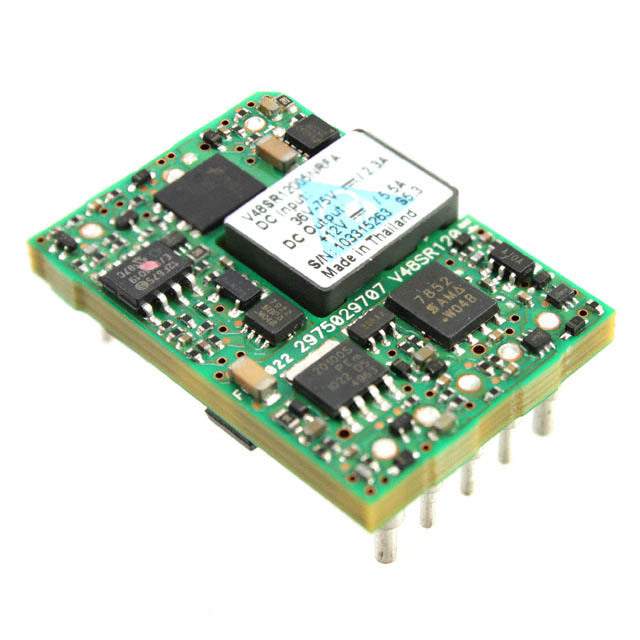

V48SR12005NRFA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi V48SR (66W)
Package Tray
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 5.5A
Power (Watts) 66 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 120°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/16 Brick
Dimension 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.2mm)
Control Features Enable, Active Low
Base Product Number V48SR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1008
Standard Package 35
Win Source Part Number 1008224-V48SR12005NRFA
Ultra Librarian 3D Model Ultra Librarian V48SR12005NRFA CAD Model

Description

Delta Electronics presents the Delphi V48SR (66W) series isolated module, a high-quality DC-DC converter designed for use in various electronic applications.

  • Power Output: 66W
  • Voltage Output: 12V
  • Voltage Isolation: 2.25kV
  • Current Output: 5.5A
  • Package: Tray
  • Standard Package: 35
  • Features: Remote On/Off, OCP, OTP, OVP, and UVLO
  • Application: ITE (Commercial)
  • Operating Temperature Range: -40°C to 120°C
  • Efficiency: 91%
  • Dimensions: 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.2mm)
