Same model may have multiple batches, images only for reference.

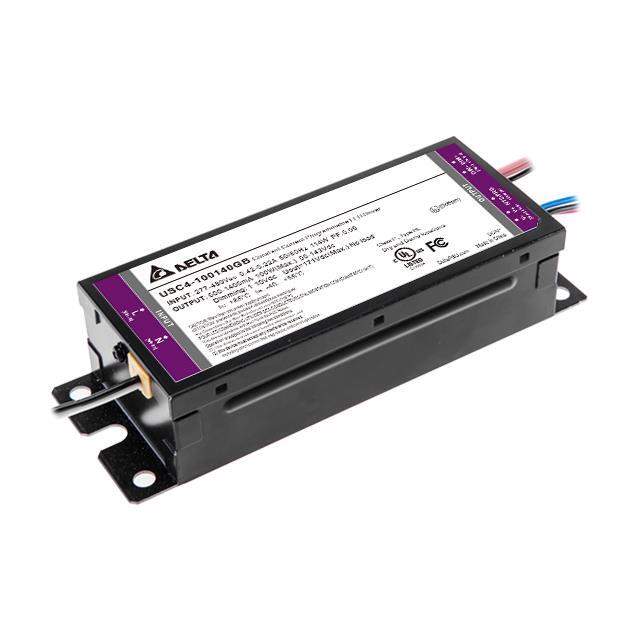

USC4-100140GB Real Image
Same model may have multiple batches, images only for reference.

USC4-100140GB

Part No USC4-100140GB
Manufacturer Delta Electronics
Catalog External/Internal (Off - Board) LED Drivers
Description LED DRIVER -100W - CC / 1.4A 50 ~ 143V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet
USC4-100140GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - LED Drivers
Mfr Delta Electronics
Series USC4 LITE
Package Box
Type Constant Current
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 249VAC
Voltage - Input (Max) 528VAC
Voltage - Output 50 ~ 143V
Current - Output (Max) 1.4A
Power (Watts) 100 W
Dimming Analog
Features OCP, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 55°C
Efficiency 92.5%
Termination Style Wire Leads
Size / Dimension 6.59" L x 2.36" W x 1.50" H (167.4mm x 59.9mm x 38.1mm)
Approval Agency cULus
Mounting Type Chassis Mount
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9520
Win Source Part Number 1351181-USC4-100140GB
Ultra Librarian 3D Model Ultra Librarian USC4-100140GB CAD Model

Description

The Delta Electronics 1351181-USC4-100140GB is an external/ internal LED driver that is ideal for constant current applications.

  • Application: Constant Current Applications
  • Power Output: 100W
  • Safety Features: OCP, OTP, OVP, and SCP
  • Voltage Output: 50 ~ 143V
  • Maximum Output Current: 1.4A
  • Input Voltage: 249VAC and 528VAC
  • Dimming: Analog Dimming
  • Efficiency: 92.5%
  • Series: USC4 LITE
  • Mounting: Chassis Mount
