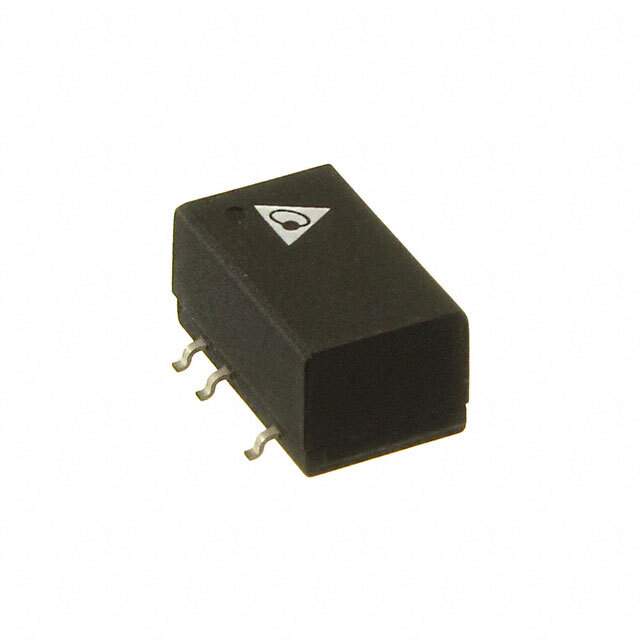

The Delta Electronics 1237423-SH01S1203A is a power supply component with an isolated module type.

• Series: SH01S/D (1W)
• Package: in a tube
• Standard Package: 10 units
• Features: SCP
• Application: suitable for medical applications
• Mounting: SMD (SMT)
• Power Output: 1 W
• Voltage Isolation: 1.5 kV
• Number of Outputs: 1
• Maximum Current Output: 300mA
• Voltage Input Range: from 10.8V to 13.2V
• Voltage Output: 3.3V
• Efficiency: 74%
• Temperature Range: for operating is from -40°C to 85°C
• Dimension: 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
• Radiation Hardened: This component is not radiation hardened
• Military Standards: does not meet military standards
