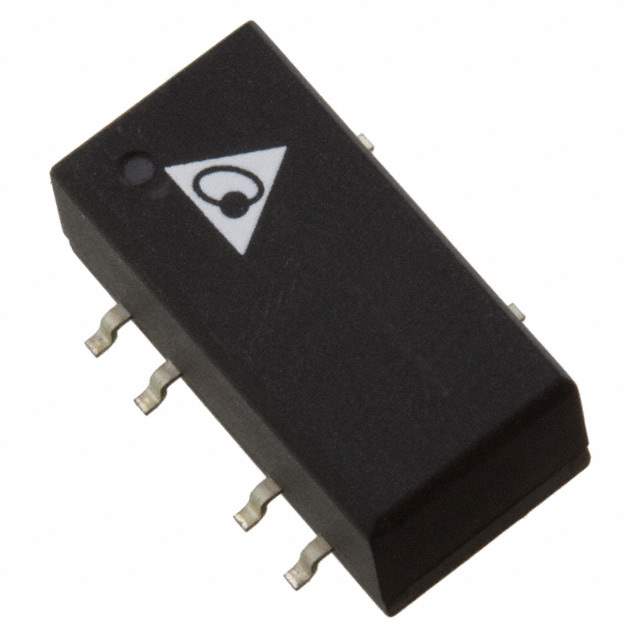

SH01D0515A

Get a Quote

Part No	SH01D0515A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Datasheet	SH01D0515A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SH01S/D (1W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	33mA, 33mA
Power (Watts)	1 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	8-SMD Module, 5 Leads
Dimension	0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm)
Base Product Number	SH01D
Other Names	941-1287
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237412-SH01D0515A
Ultra Librarian 3D Model	Ultra Librarian SH01D0515A CAD Model

Alternative Products

Description

Delta Electronics brings you the 1237412-SH01D0515A, a 1W isolated module power supply component.

Series: SH01S/D (1W)
Package Size: 0.54 inches L, 0.31 inches W, and 0.28 inches H
Application: Medical
Feature: SCP
Voltage Isolation: 1.5 kV
Outputs: 2
Maximum Output Current: 33mA and 33mA respectively
Input Voltage: 4.5V to 5.5V
Output Voltage: 15V and -15V respectively
Efficiency: 78%
Mounting Type: SMD (SMT)
Package/Case: 8-SMD module, 5 leads
Operating Temperature Range: Between -40°C to 85°C
ECCN: EAR99
