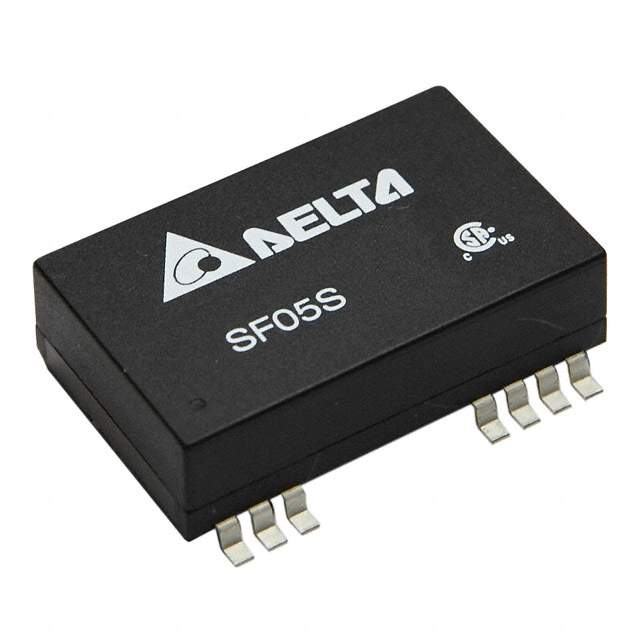

Same model may have multiple batches, images only for reference.

SF05D2412A

Get a Quote

Part No	SF05D2412A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 208mA, 208mA 18V - 36V Input
Datasheet	SF05D2412A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SF05S/D (5W)
Package	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	208mA, 208mA
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	Remote On/Off, OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	85%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	SF05D
Other Names	941-1378
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237429-SF05D2412A
Ultra Librarian 3D Model	Ultra Librarian SF05D2412A CAD Model

Alternative Products

Description

The Delta Electronics SF05D2412A is a DC DC converter that is designed for use in a variety of applications.

Series: SF05S/D (5W)
Package: features a tube package
Application: designed for use in medical applications
Features: features a remote on/off, OCP, SCP, and UVLO
Power Output: 5 W
Voltage Isolation: 1.5 kV
Number of Outputs: 2, with a current output of 208mA, 208mA
Voltage Input: ranges from 18V to 36V
Voltage Output: output 1 is 12V, and the voltage output 2 is -12V
Efficiency: 85%
Package/Case: 24-SMD module, 12 leads
Manufacturer: Delta Electronics
Win Source Part Number: 1237429-SF05D2412A
