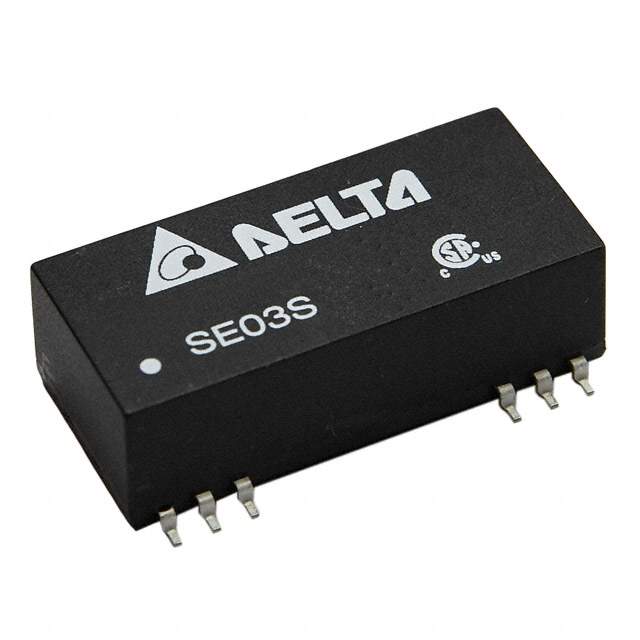

Same model may have multiple batches, images only for reference.

SE03D2412A

Name: SE03D2412A
Brand: Delta Electronics
SKU: 1237443
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SE03D2412A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input
Datasheet	SE03D2412A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SE03S/D (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	Medical
Features	SCP, UVLO
Temperature Range - Operating	-40°C ~ 71°C
Efficiency	82%
Mounting	SMD (SMT)
Package / Case	24-SMD Module, 12 Leads
Dimension	1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
Base Product Number	SE03D
Other Names	941-1357
Standard Package	10
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237443-SE03D2412A
Ultra Librarian 3D Model	Ultra Librarian SE03D2412A CAD Model

Alternative Products

Description

The SE03S/D (3W) is an isolated module DC-DC converter with a package of 24-SMD module, 12 leads.

Features: SCP and UVLO
Application: making it a reliable power supply for medical applications
Voltage Isolation: 1.5 kV
Outputs: two outputs, with a maximum output current of 125mA each
Input Voltage: ranges from 18V to 36V
Output Voltage: output 1 has a voltage of 12V and output 2 has a voltage of -12V
Efficiency: 82%
Operating Temperature Range: -40°C to 71°C
Dimension: 1.27" L x 0.74" W x 0.40" H (32.3mm x 18.8mm x 10.2mm)
