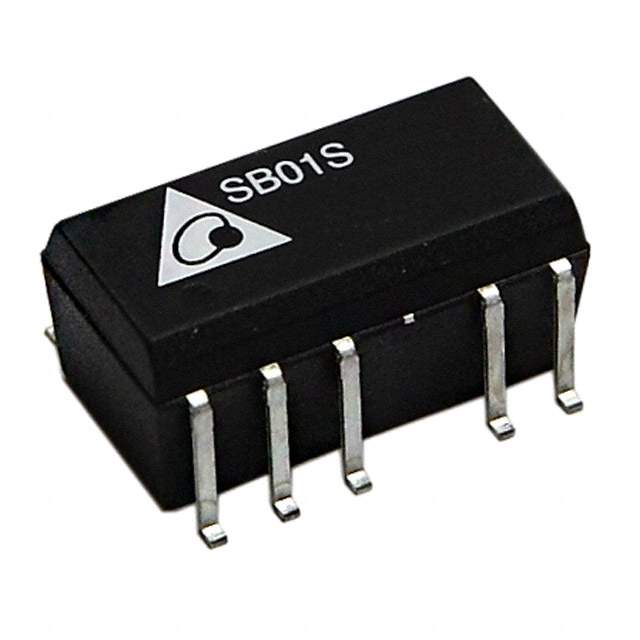

Same model may have multiple batches, images only for reference.

SB01S0512A

Name: SB01S0512A
Brand: Delta Electronics
SKU: 1237491
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SB01S0512A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 1W / Isolated Module DC DC Converter 1 Output 12V 84mA 4.5V - 5.5V Input
Datasheet	SB01S0512A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SB01S/D (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	12V
Current - Output (Max)	84mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	78%
Mounting	SMD (SMT)
Package / Case	12-SMD Module, 10 Leads
Dimension	0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Base Product Number	SB01S
Other Names	941-1263
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237491-SB01S0512A
Ultra Librarian 3D Model	Ultra Librarian SB01S0512A CAD Model

Alternative Products

Description

The Delta Electronics SB01S0512A is a 1W isolated module DC-DC converter with SCP feature.

Standard Package: 10
Mounting: SMD (SMT)
Voltage Isolation: 3 kV
Outputs: 1 output
Current: 84mA
Voltage Input Range: from 4.5V to 5.5V
Voltage Output 1: 12V
Converter: compliant with REACH
Temperature Range: -40°C ~ 85°C
Dimension: 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Series: part of the SB01S/D (2W) series
Suitable for: medical applications
