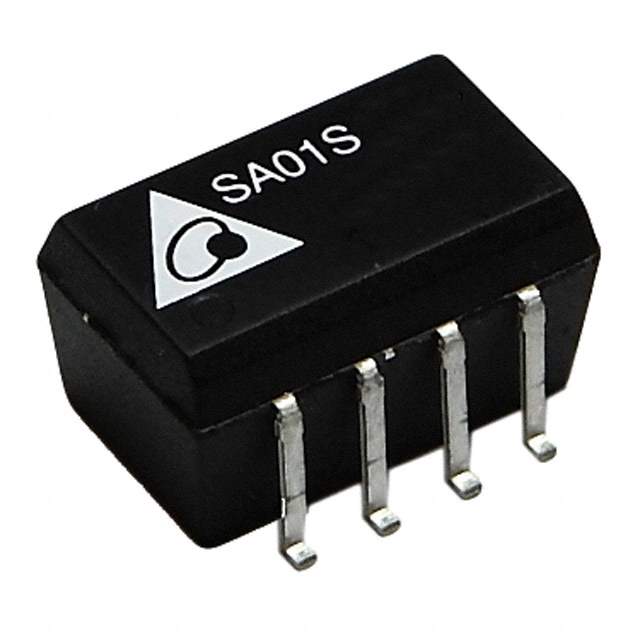

Same model may have multiple batches, images only for reference.

SA01S0515A

Name: SA01S0515A
Brand: Delta Electronics
SKU: 1237498
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SA01S0515A
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 5.5V Input
Datasheet	SA01S0515A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	SA01S (1W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Current - Output (Max)	67mA
Power (Watts)	1 W
Voltage - Isolation	1 kV
Applications	Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	81%
Mounting	SMD (SMT)
Package / Case	8-SMD Module
Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Base Product Number	SA01S
Other Names	941-1239
Standard Package	10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237498-SA01S0515A
Ultra Librarian 3D Model	Ultra Librarian SA01S0515A CAD Model

Alternative Products

Description

The Delta Electronics SA01S (1W) series isolated module is a high-performance DC-DC converter designed for medical applications.

Voltage-isolation Rating: 1 kV
Maximum Output Current: 67mA @ 15V
Package: 8-SMD module
Mounting: SMD (SMT) technology
Efficiency: 81%
Features: SCP features
Temperature Range: -40°C to 85°C
Dimensions: 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Supplied in: a tube package with 10 units per package
