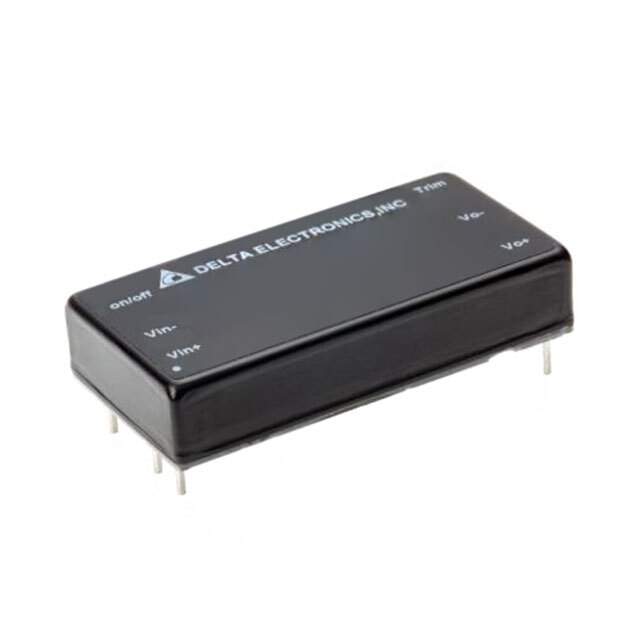

Same model may have multiple batches, images only for reference.

S24SP12005PDFH

Name: S24SP12005PDFH
Brand: Delta Electronics
SKU: 1237518
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	S24SP12005PDFH
Manufacturer	Delta Electronics
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 60W / Isolated Module DC DC Converter 1 Output 12V 5A 9V - 36V Input
Datasheet	S24SP12005PDFH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Delta Electronics
Series	S24SP (60W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	5A
Power (Watts)	60 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	92.8%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.69" H (50.8mm x 25.4mm x 17.5mm)
Base Product Number	S24SP
Other Names	1145-1286
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1237518-S24SP12005PDFH
Ultra Librarian 3D Model	Ultra Librarian S24SP12005PDFH CAD Model

Alternative Products

Description

{"Intro":"

The Delta Electronics 1237518-S24SP12005PDFH is a power supply board mount DC DC converter that is designed for ITE (Commercial) applications.

","Specifications":"

Power Wattage: 60W
Voltage Isolation: 1.5 kV
Number of Outputs: One
Maximum Output Current: 5A
Efficiency: 92.8%
Package: 6-DIP module
Temperature Range: -40°C to 85°C (With Derating)
Manufacturer: Delta Electronics
