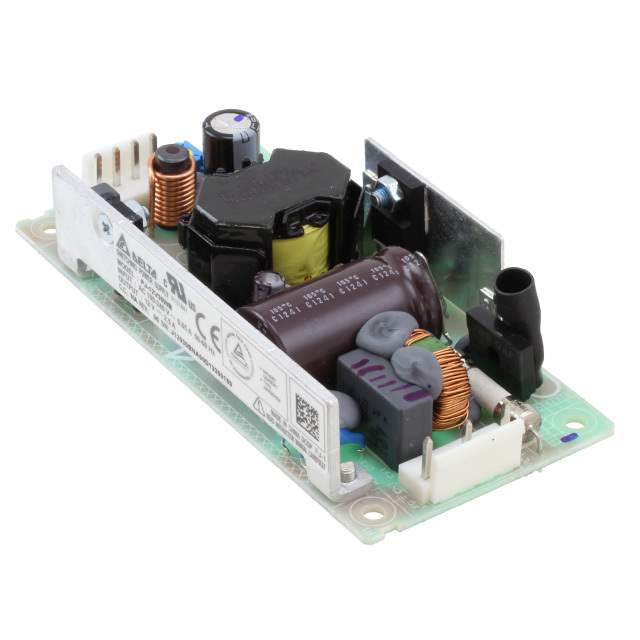

PJ-12V30WBNA Real Image
Same model may have multiple batches, images only for reference.

PJ-12V30WBNA

Part No PJ-12V30WBNA
Manufacturer Delta Electronics
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 12V 30W / Open Frame, Conformal Coated AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
Datasheet
PJ-12V30WBNA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Delta Electronics
Series PJ (30W)
Package Bulk
Type Open Frame, Conformal Coated
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 12V
Current - Output 1 2.5 A
Power (Watts) 30W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 85%
Temperature Range - Operating -10°C ~ 70°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 4.13" L x 1.97" W x 1.01" H (105.0mm x 50.0mm x 25.6mm)
Approval Agency CB, CE, cURus, TUV
Base Product Number PJ-12V30
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Win Source Part Number 1340051-PJ-12V30WBNA
Ultra Librarian 3D Model Ultra Librarian PJ-12V30WBNA CAD Model

Description

The PJ-12V30WBNA is an open frame, conformal coated AC DC converter power supply with an adjustable output and universal input from Delta Electronics.

  • Type: Open Frame
  • Output: Adjustable
  • Voltage - Input: 85 ~ 264 VAC
  • Voltage - Isolation: 3 kV
  • Number of Outputs: 1
  • Voltage - Output 1: 12V
  • Power (Watts): 30W
  • Efficiency: 85%
  • Applications: ITE (Commercial)
  • Features: Conformal Coated, Universal Input
  • Requires Minimum Load: Yes
  • Mounting Type: Chassis Mount
  • Operating Temperature: -10°C ~ 70°C (With Derating)
  • Approval Agency: CB, CE, cURus, TUV
