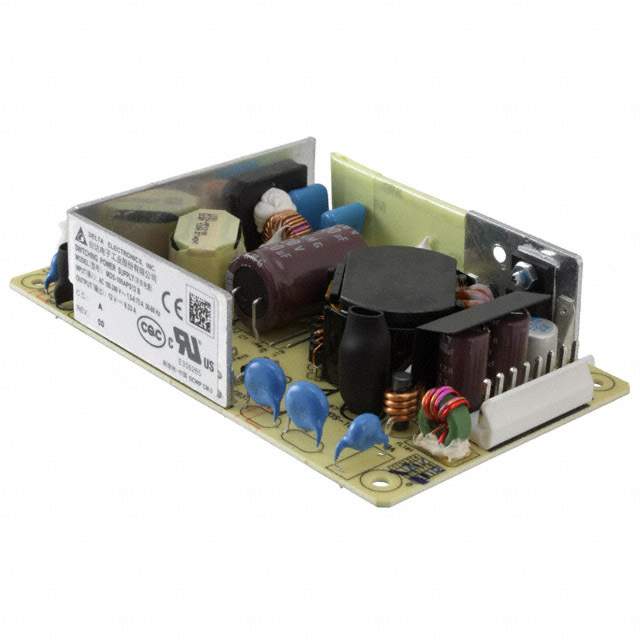

MDS-100APS12 BA Real Image
Same model may have multiple batches, images only for reference.

MDS-100APS12 BA

Part No MDS-100APS12 BA
Manufacturer Delta Electronics
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 12V 80W / Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Datasheet
MDS-100APS12 BA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Delta Electronics
Series MDS-100 (100W)
Package Box
Type Open Frame
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC
Voltage - Output 1 12V
Current - Output 1 8.3 A
Power (Watts) 80W (100W Forced Air)
Applications ITE (Commercial), Medical
Voltage - Isolation 4 kV
Efficiency 88%
Temperature Range - Operating -10°C ~ 70°C
Features Universal Input
Mounting Type Chassis Mount
Dimension 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.1mm)
Approval Agency CB Scheme, CE, CQC, EN, UL
Standard Number 50581; 55011; 55032; 60601-1; 60950-1
Minimum Load Required No
Base Product Number MDS-100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6007
Other Names 1145-1010,MDS100APS12BA
Standard Package 50
Win Source Part Number 1007939-MDS-100APS12 BA
Ultra Librarian 3D Model Ultra Librarian MDS-100APS12 BA CAD Model

Description

The Delta Electronics MDS-100APS12 BA is an external/internal AC DC converter with a power output of 80W (100W Forced Air).

  • Power Output: 80W (100W Forced Air)
  • Input Voltage Range: 90 ~ 264 VAC
  • Voltage Isolation: 4 kV
  • Output Voltage: 12V
  • Output Current: 8.3 A
  • Mounting Type: chassis mount
  • Package: box
  • Applications: ITE (Commercial) and Medical
  • Standard Package: 50
  • Efficiency: 88%
  • Operating Temperature: -10°C to 70°C
  • Dimension: 5.00" L x 3.00" W x 1.22" H (127.0mm x 76.2mm x 31.1mm)
