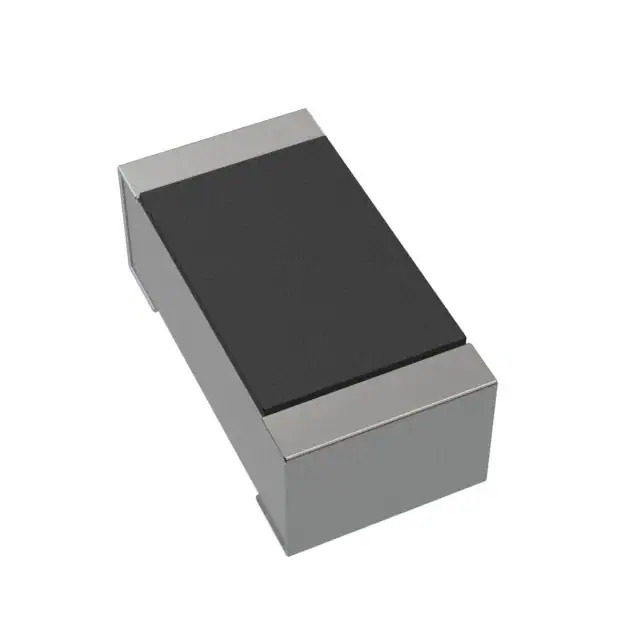

Same model may have multiple batches, images only for reference.

CML0306-1N0-BNH

Name: CML0306-1N0-BNH
Brand: Delta Electronics
SKU: 1369705
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CML0306-1N0-BNH
Manufacturer	Delta Electronics
Catalog	Fixed Inductors
Description	FIXED IND 1NH 800MA 100 MOHM SMD
Datasheet	CML0306-1N0-BNH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Delta Electronics/Cyntec
Series	CML0306
Package	Tape & Reel
Product Status	Obsolete
Type	Thin Film
Material - Core	-
Inductance	1 nH
Tolerance	±0.1nH
Current Rating (Amps)	800 mA
Current - Saturation (Isat)	-
Shielding	Shielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	5 @ 100MHz
Frequency - Self Resonant	6GHz
Ratings	-
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201
Size / Dimension	0.024" L x 0.012" W (0.61mm x 0.31mm)
Height - Seated (Max)	0.013" (0.33mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1369705-CML0306-1N0-BNH
Ultra Librarian 3D Model	Ultra Librarian CML0306-1N0-BNH CAD Model

Alternative Products

Description

The Delta Electronics/Cyntec CML0306-1N0-BNH is a fixed inductor designed for various electronic applications. Delta Electronics/Cyntec

Type: Thin Film
Package: Tape and Reel
Temperature Range: -40°C to 85°C
Size: 0.024" length and 0.012" width (0.61mm x 0.31mm)
Seated Height: 0.013" (0.33mm)
Tolerance: ±0.1nH
DC Resistance (DCR): 100mOhm maximum
Shielded: Yes
Self-Resonant Frequency: 6GHz
Current Rating: 800mA
Q Value: 5 @ 100MHz
REACH Compliance: Compliant
ECCN: EAR99
