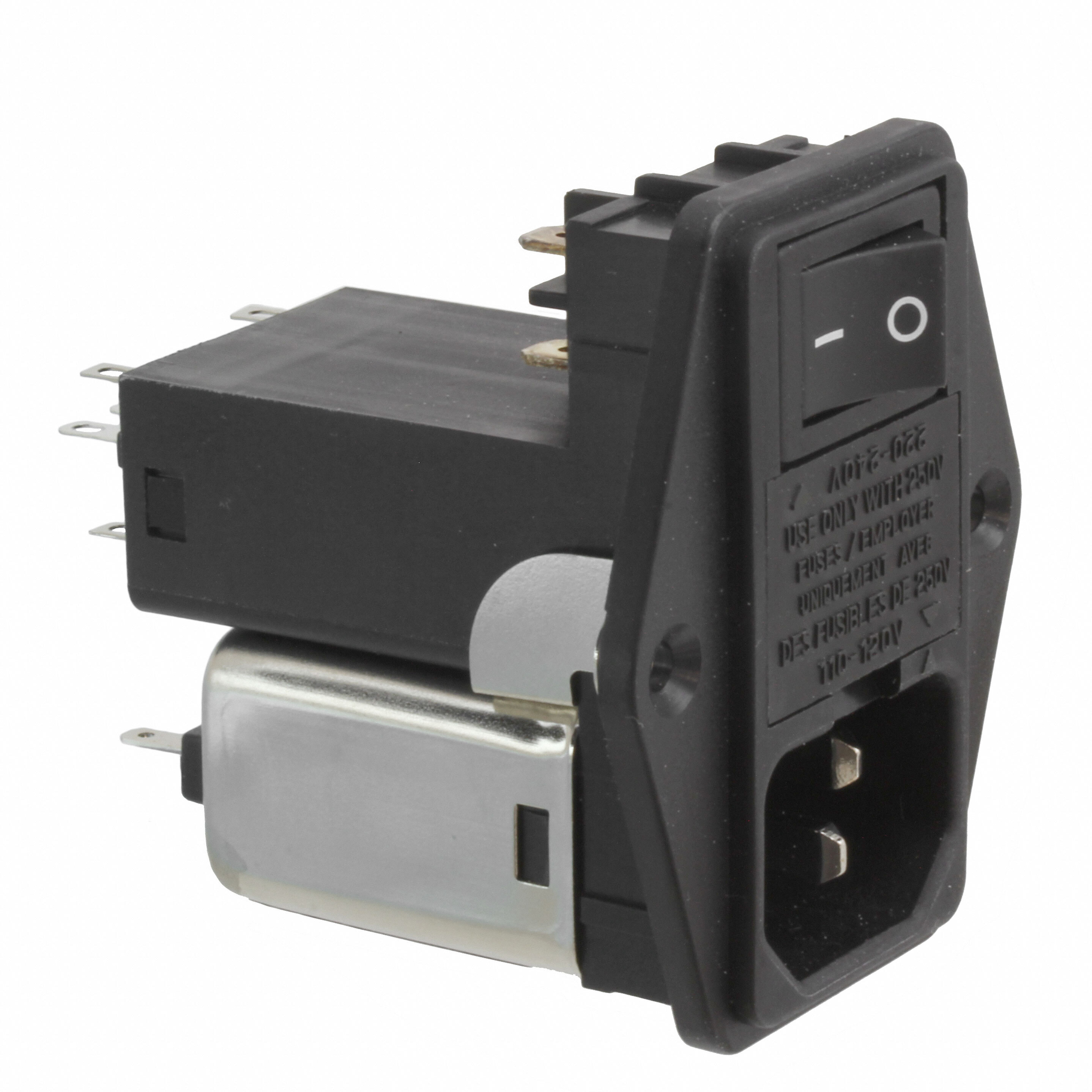

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Filter Type Single Phase
Configuration Two Stage
Voltage - Rated AC 115V, 250V
Current 5 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style IEC 320-C14, Quick Connect
Inductance 1.3mH
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1534694-05DRDG3S
Ultra Librarian 3D Model Ultra Librarian 05DRDG3S CAD Model
