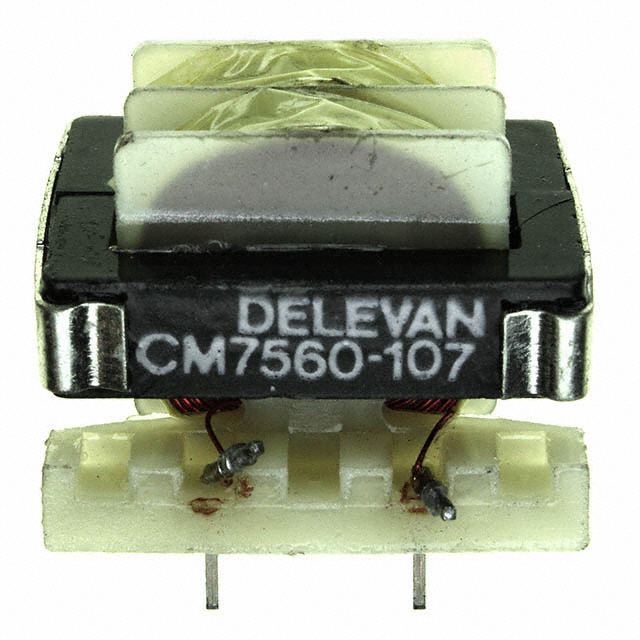

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 100 µH @ 1 kHz
Current Rating (Max) 2.8A
DC Resistance (DCR) (Max) 25mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.839" L x 0.740" W (21.30mm x 18.80mm)
Height (Max) 0.669" (17.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530460-CM9900-104
Ultra Librarian 3D Model Ultra Librarian CM9900-104 CAD Model
