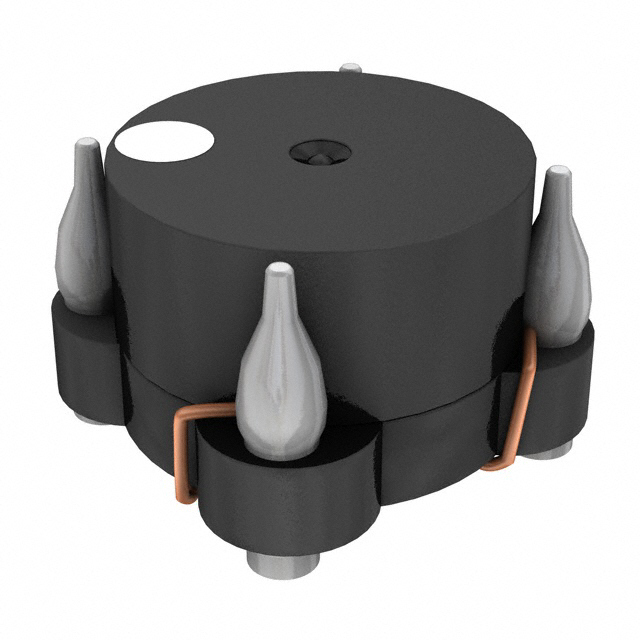

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 500 µH @ 10 kHz
Current Rating (Max) 3.3A
DC Resistance (DCR) (Max) 24mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.530" L x 0.530" W (13.46mm x 13.46mm)
Height (Max) 0.300" (7.62mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530458-CM6460-504
Ultra Librarian 3D Model Ultra Librarian CM6460-504 CAD Model
