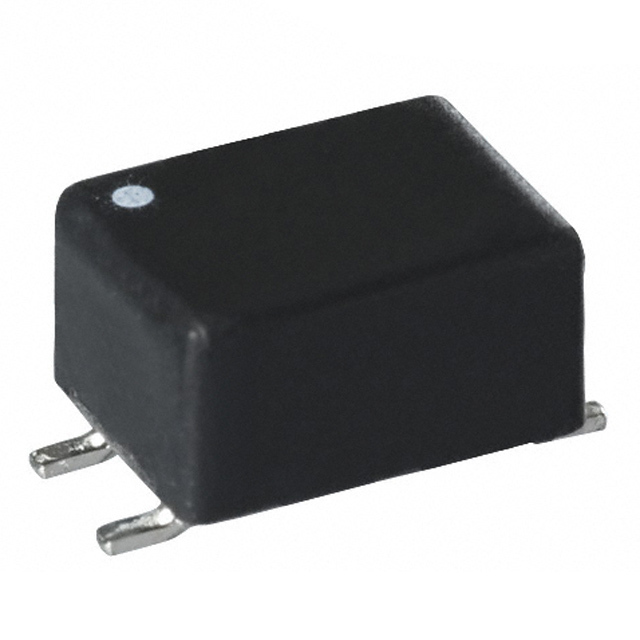

Same model may have multiple batches, images only for reference.
CM6350R-684 Delevan – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CM6350R-684

Part No CM6350R-684
Catalog Common Mode Chokes
Description CMC 680UH 1.2A 2LN SMD
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 680 µH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 90mOhm
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Surface Mount
Size / Dimension 0.360" L x 0.360" W (9.14mm x 9.14mm)
Height (Max) 0.210" (5.33mm)
Case / Package Horizontal, 4 PC Pad
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530434-CM6350R-684
Ultra Librarian 3D Model Ultra Librarian CM6350R-684 CAD Model

Description
