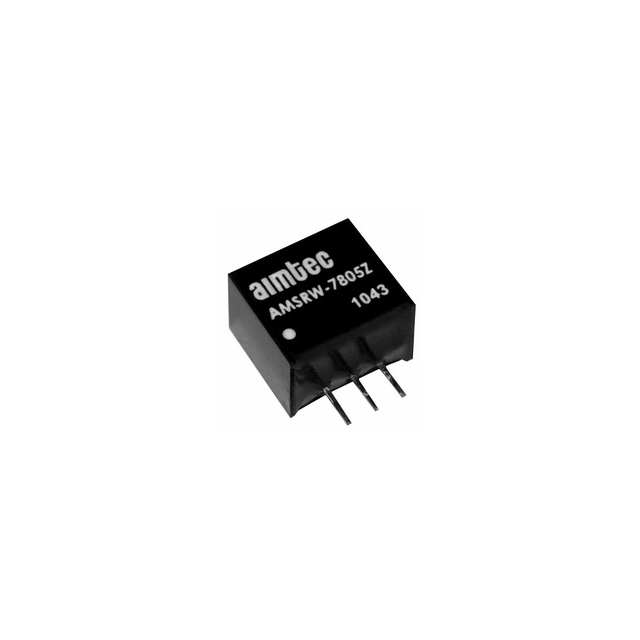

AMSRW-7809Z Real Image1 AMSRW-7809Z Real Image2
Same model may have multiple batches, images only for reference.
AMSRW-7809Z Real Image1 AMSRW-7809Z Real Image2
AMSRW-7809Z Real Image1 AMSRW-7809Z Real Image2
Same model may have multiple batches, images only for reference.

AMSRW-7809Z

Part No AMSRW-7809Z
Manufacturer Dc Components
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 4.5W
Datasheet
AMSRW-7809Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Features Non-Isolated PoL Module DC DC Converter Output 9V - - - 500mA 14V - 72V Input
Manufacturer AIMTEC
Series AMSRW-78Z (7.5W)
Package Tube
Operating Temperature Range -40°C ~ 60°C (With Derating)
Mounting Through Hole
Package 3-SIP Module
Family Name AMSRW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 938983-AMSRW-7809Z
Ultra Librarian 3D Model Ultra Librarian AMSRW-7809Z CAD Model

Description

The AMSRW-7809Z is a non-isolated PoL module DC-DC converter that offers an output of 9V and 500mA.

  • Output: 9V
  • Output Current: 500mA
  • Input Range: 14V to 72V
  • Operating Temperature: -40°C to 60°C with derating
  • Package: 3-SIP module
  • Mounting: Through a hole
  • Series: AMSRW
  • Popularity: High
  • Supply and Demand: Balance
  • Package Size: 40
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
