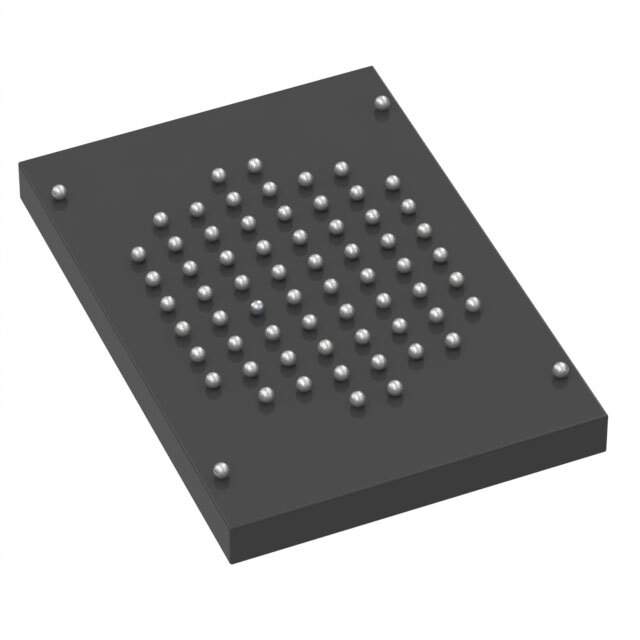

S29PL127J70BAW023 Real Image
Same model may have multiple batches, images only for reference.

S29PL127J70BAW023

Part No S29PL127J70BAW023
Manufacturer Cypress Semiconductor Corp
Catalog Unclassified Memory
Description IC FLASH 128MBIT PARALLEL 64FBGA  /  FLASH - NOR Memory IC 128Mb (8M x 16) Parallel 70 ns 64-FBGA (8x11.6)
Datasheet
S29PL127J70BAW023 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Cypress Semiconductor Corp
Series PL-J
Package Tape & Reel (TR)
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 128Mb (8M x 16)
Memory Interface Parallel
Write Cycle Time - Word, Page 70ns
Access Time 70 ns
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 64-VFBGA
Supplier Device Package 64-FBGA (8x11.6)
Standard Package 2,500
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1254647-S29PL127J70BAW023
Ultra Librarian 3D Model Ultra Librarian S29PL127J70BAW023 CAD Model

Description

The Cypress Semiconductor Corp S29PL127J70BAW023 is a 128Mb (8M x 16) non-volatile FLASH - NOR memory with an access time of 70 ns.

  • Access Time: 70 ns
  • Voltage Supply: 2.7V ~ 3.6V
  • Write Cycle Time: 70ns
  • Memory Format: FLASH
  • Memory Interface: parallel
  • Package/Case: 64-VFBGA
  • Temperature Range: -25°C ~ 85°C (TA)
  • Product Status: limited
  • Product Status: obsolete
  • RoHS: non-compliant
