The S29GL01GT11FHIV20 is a 1 Gbit (128MB) flash memory device from Cypress Semiconductor Corp (now Infineon Technologies), part of the GL-T family. This NOR flash memory is designed for high-performance applications requiring fast read speeds and reliable data storage. It's commonly used for storing boot code, application code, and data in embedded systems.

Applications

• Automotive systems (e.g., navigation, infotainment)
• Industrial control systems
• Networking equipment
• Wireless base stations
• Medical devices

Features

• 1 Gbit (128 MB) capacity
• NOR Flash Technology
• High-speed read operations
• 100,000 program/erase cycles per sector
• Sector erase capability
• CFI (Common Flash Interface) compliant
• Single 3.0V power supply

Benefits

• Large storage capacity for complex applications
• Fast boot times and application loading due to high read speeds
• Reliable data storage with high endurance
• Easy integration with industry-standard interfaces
• Flexible memory management with sector erase

Detailed Specifications

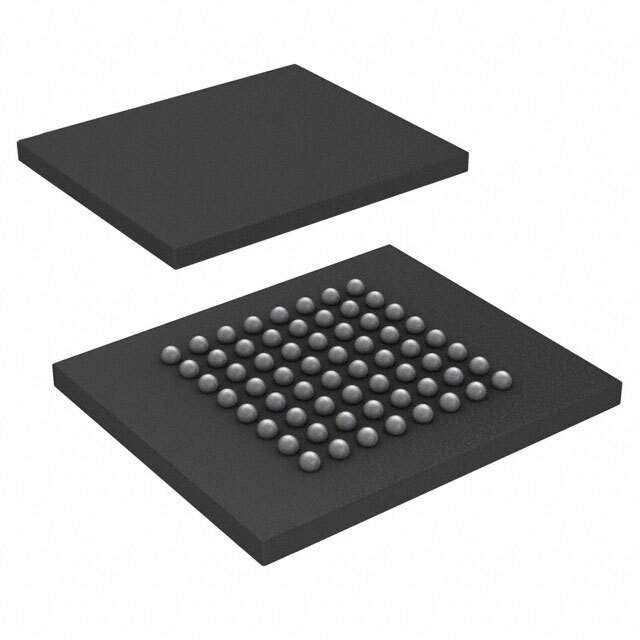

The S29GL01GT11FHIV20 operates at a 3.0V power supply. It supports burst read operations for fast data access. The typical read access time is in the range of nanoseconds, providing quick access to stored data. The memory is organized into sectors, allowing for flexible erase operations. The device features CFI compliance, enabling easy identification and configuration by system software. The S29GL01GT11FHIV20 is typically available in a BGA (Ball Grid Array) package.

The high-speed read operations of this flash memory device allow for quick execution of code and retrieval of data, which is essential for high-performance applications. The sector erase capability enables efficient memory management, as only the necessary portions of the memory need to be erased and reprogrammed. The high endurance of 100,000 program/erase cycles per sector ensures reliable data storage over the lifetime of the device. The CFI compliance simplifies integration with system software, reducing development time and effort.

In summary, the S29GL01GT11FHIV20 is a high-performance, reliable flash memory device suitable for a wide range of embedded applications. Its large capacity, fast read speeds, and flexible features make it an excellent choice for storing code and data in demanding systems.
