Same model may have multiple batches, images only for reference.

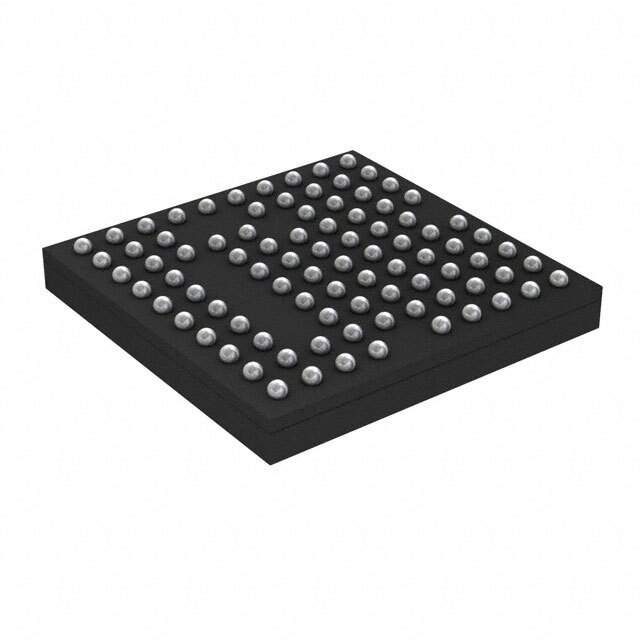

CYW20734UA1KFFB3G Real Image
Same model may have multiple batches, images only for reference.

CYW20734UA1KFFB3G

Part No CYW20734UA1KFFB3G
Manufacturer Cypress Semiconductor Corp
Catalog RF Receivers
Description IC RF TXRX+MCU BLUETOOTH 90TFBGA / IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 90-TFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Cypress Semiconductor Corp
Package Tray
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Modulation 8DPSK, DQPSK, GFSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 12dBm
Sensitivity -96.5dBm
Serial Interfaces I2C, I2S, SPI, UART
GPIO 40
Voltage - Supply 3.3V
Current - Receiving 26mA
Current - Transmitting 60mA
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 90-TFBGA
Supplier Device Package 90-FBGA (8.5x8.5)
Base Product Number CYW20734
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Other Names 428-3930,428-3654,428-3930-ND,428-3930INACTIVE,BCM20734UA1KFFB3G
Standard Package 520
Win Source Part Number 1183037-CYW20734UA1KFFB3G
Ultra Librarian 3D Model Ultra Librarian CYW20734UA1KFFB3G CAD Model

Description

The Cypress Semiconductor Corp CYW20734UA1KFFB3G is an RF/IF and RFID component that belongs to the RF Transceiver ICs category. It is a TxRx + MCU type component that comes in a tray package. It has a standard package of 520 and is mounted using SMD (SMT) technology. The component has a frequency of 2.4GHz and protocol of Bluetooth v4.1. The memory size is not specified while the power output is 12dBm. The component has a sensitivity of -96.5dBm and a maximum data rate of 2Mbps. It has a current receiving of 26mA and a current transmitting of 60mA. The voltage supply is 3.3V and the package/case is 90-TFBGA. The component has a Win Source Part Number of 1183037.
