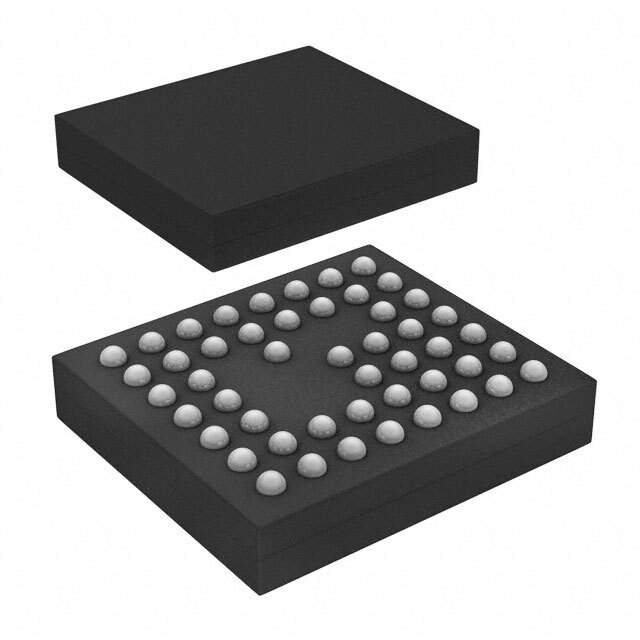

The CYW20704UA2KFFB1GT is a single-chip Bluetooth 4.2 compliant device manufactured by Cypress Semiconductor (now Infineon). It's designed for applications requiring Bluetooth connectivity, including audio streaming, data transfer, and device control. This highly integrated solution combines a Bluetooth radio, baseband processor, and microcontroller into a single package, simplifying system design and reducing BOM cost.

Applications

• Bluetooth Speakers: Wireless speakers benefit from the CYW20704's audio streaming capabilities and Bluetooth connectivity.
• Headsets and Headphones: Bluetooth headsets and headphones can utilize the device for wireless audio transmission and control.
• Wearable Devices: Smartwatches, fitness trackers, and other wearable devices can leverage the Bluetooth connectivity for data synchronization and communication with smartphones.
• Remote Controls: Bluetooth remote controls for TVs, set-top boxes, and other devices can use the CYW20704 for wireless control.
• IoT Devices: A wide range of Internet of Things (IoT) devices, such as sensors and actuators, can utilize the Bluetooth connectivity for data transmission and control.

Features

• Bluetooth 4.2 Compliant: Supports Bluetooth 4.2 specifications, including Bluetooth Low Energy (BLE) and Bluetooth Classic.
• Integrated Bluetooth Radio: Incorporates a high-performance Bluetooth radio for reliable wireless communication.
• Baseband Processor: Includes a baseband processor for handling Bluetooth protocol processing.
• Microcontroller: Integrated microcontroller for application processing and control.
• Audio Streaming Support: Supports A2DP (Advanced Audio Distribution Profile) for high-quality audio streaming.
• Low Power Consumption: Optimized for low power operation, extending battery life in portable devices.
• UART, SPI, and I2C Interfaces: Supports common serial communication interfaces for flexible integration with other peripherals.
• Integrated Antenna: Many implementations utilize an integrated antenna.

Benefits

• Simplified System Design: Highly integrated solution reduces component count and simplifies system design.
• Lower BOM Cost: Single-chip solution reduces the overall bill of materials (BOM) cost.
• Improved Performance: Bluetooth 4.2 compliance and optimized design ensure reliable wireless communication.
• Extended Battery Life: Low power consumption extends the battery life of portable devices, improving user experience.
• Greater Flexibility: Integrated microcontroller allows for customization and adaptation to specific application requirements.
• Reduced Development Time: Comprehensive software development kit (SDK) simplifies application development.

Additional Details

The CYW20704UA2KFFB1GT operates in the 2.4 GHz ISM band. It supports Adaptive Frequency Hopping (AFH) to minimize interference with other wireless devices. The device typically requires a 1.8V to 3.6V power supply. It often includes support for various audio codecs. Detailed specifications, including RF performance, power consumption, and environmental ratings, are available in the Cypress (Infineon) datasheet. The chipset is also sometimes used with Cypress' WICED (Wireless Internet Connectivity for Embedded Devices) SDK to make application development faster and easier.
