Same model may have multiple batches, images only for reference.

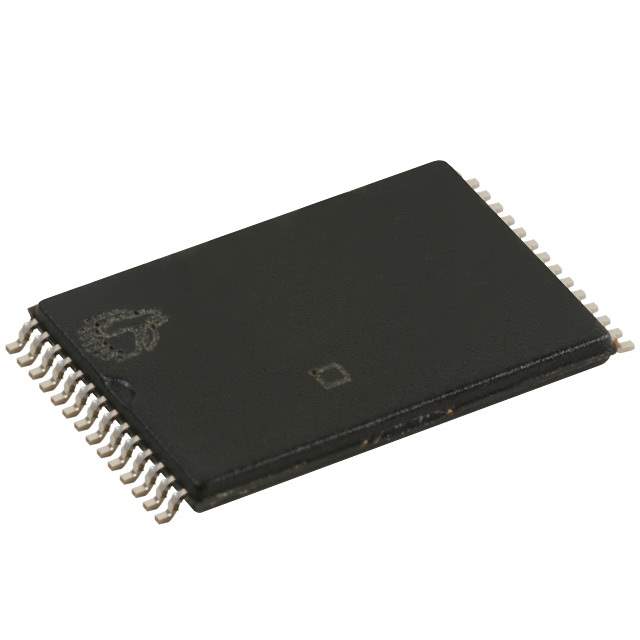

CY7C199NL-15ZXC Real Image
Same model may have multiple batches, images only for reference.

CY7C199NL-15ZXC

Part No CY7C199NL-15ZXC
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description 32K x 8 Static RAM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Packaging Tube
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 256Kb (32K x 8)
Write Cycle Time - Word, Page 15ns
Access Time 15ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 28-TSSOP (0.465", 11.80mm Width)
Manufacturer Package 28-TSOP I
Win Source Part Number 1165370-CY7C199NL-15ZXC
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY7C199NL
Introduction Date January 07, 2003
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY7C199NL-15ZXC CAD Model

Description

The Cypress Semiconductor Corp CY7C199NL-15ZXC is a 256Kb (32K x 8) Volatile SRAM - Asynchronous memory that has an access time of 15ns.

  • Memory Size: 256Kb (32K x 8)
  • Type: Volatile SRAM - Asynchronous
  • Access Time: 15ns
  • Operating Supply Voltage: 4.5 V to 5.5 V
  • Operating Temperature Range: 0°C to 70°C
  • Memory Format: SRAM
  • Package: 28-TSSOP (0.465", 11.80mm Width)
  • Lifecycle Status: Obsolete
  • Supply and Demand Status: Limited
