Same model may have multiple batches, images only for reference.

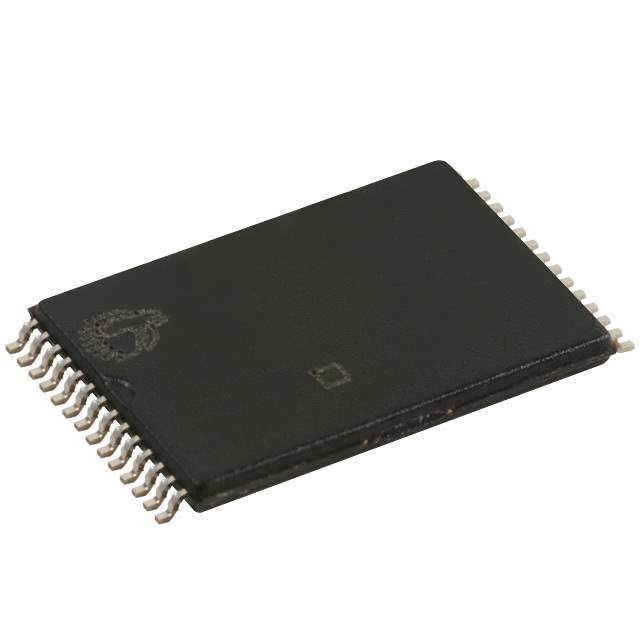

CY7C1399BNL-12ZXC Real Image
Same model may have multiple batches, images only for reference.

CY7C1399BNL-12ZXC

Part No CY7C1399BNL-12ZXC
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description 256K (32K x 8) Static RAM
Datasheet
CY7C1399BNL-12ZXC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Packaging Tray
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 256Kb (32K x 8)
Write Cycle Time - Word, Page 12ns
Access Time 12ns
Memory Interface Parallel
Operating Supply Voltage 3 V ~ 3.6 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 28-TSSOP (0.465", 11.80mm Width)
Manufacturer Package 28-TSOP I
Win Source Part Number 1165145-CY7C1399BNL-12ZXC
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY7C1399BNL
Introduction Date July 14, 1996
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY7C1399BNL-12ZXC CAD Model

Description

The CY7C1399BNL-12ZXC is an asynchronous SRAM memory IC manufactured by Cypress Semiconductor Corp.

  • Memory Size: 256Kb (32K x 8)
  • Access Time: 12ns
  • Supply Voltage: 3 V to 3.6 V
  • Write Cycle Time: 12ns
  • Package: 28-TSSOP (0.465", 11.80mm Width)
  • Mounting: SMD
  • Memory Interface: Parallel
  • Memory Type: Volatile
  • Family: CY7C1399BNL
  • Format: SRAM
  • RoHS Compliant: Yes
  • Estimated EOL Date: Obsolete
  • Open Market Status: Limited supply and demand
