The CY7C1061AV33-10BAXI is a high-performance CMOS Static RAM (SRAM) device manufactured by Cypress Semiconductor. This SRAM is designed to provide fast access times and low power consumption, making it suitable for various memory applications. It's organized as 64K x 16 bits, providing a total memory capacity of 1 Mbit. The '10' in the part number signifies a 10ns access time.

Applications

• Cache memory in embedded systems
• High-speed data buffering
• Networking equipment
• Digital signal processing (DSP) systems
• Industrial control systems

Features

• High-speed access time (10 ns)
• Low operating voltage (3.3V)
• Low power consumption
• 64K x 16-bit organization (1 Mbit)
• Available in a variety of packages including BGA
• TTL-compatible inputs and outputs

Benefits

• Enables fast data retrieval and processing, improving system performance.
• Reduces power consumption, making it suitable for battery-powered applications.
• Provides ample memory capacity for storing data and instructions.
• Offers flexibility in system design with various package options.
• Simplifies interfacing with other digital components due to TTL compatibility.

Specifications

The CY7C1061AV33-10BAXI features the following key specifications:

• Access Time: 10 ns
• Operating Voltage: 3.3V ± 0.3V
• Operating Temperature: -40°C to +85°C (Industrial)
• Standby Current: Typically in the mA range (check datasheet for exact value)
• Operating Current: Typically in the mA range (check datasheet for exact value, depends on frequency)
• Data Retention Voltage: Typically 2.0V

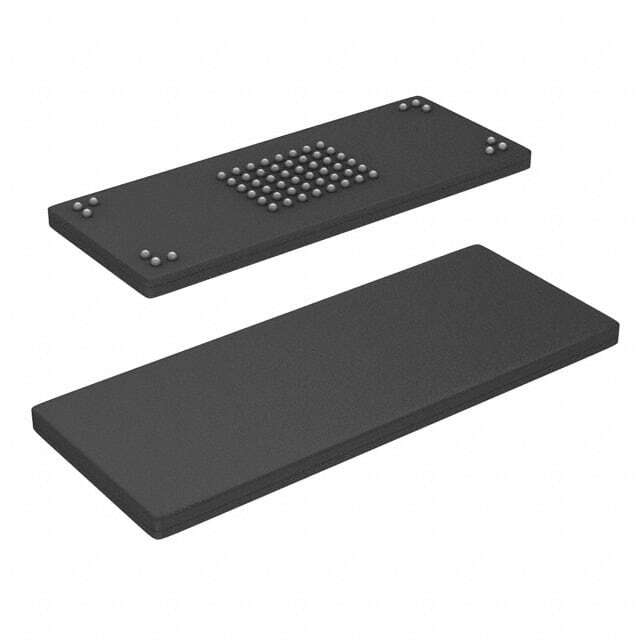

• Package: BGA (Ball Grid Array)

For detailed specifications and application notes, please refer to the Cypress Semiconductor datasheet for CY7C1061AV33-10BAXI.
